END MILL HOLDER - BT - INCH

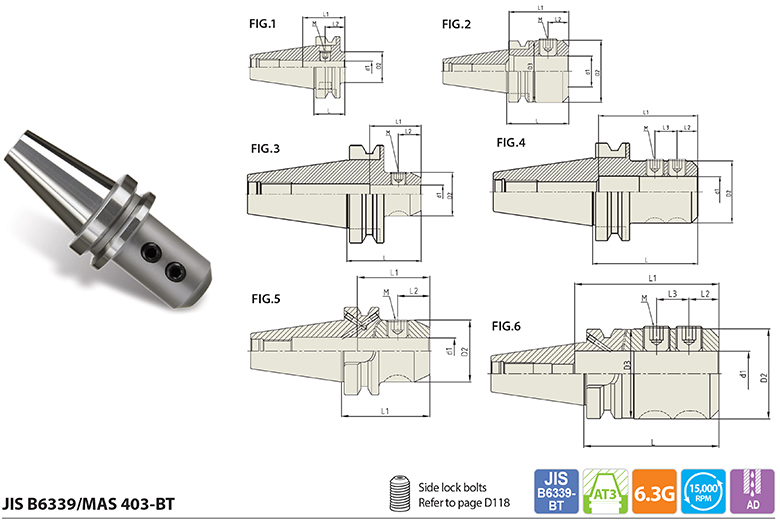

EDP No. TAPER No. MODEL No. d1 D2 D3 L L1 L2 L3 M FIG.
STUB
AH206 40 BT40 - EMH 1/2 - 1.25 0.500 1.250 - 1.250 1.693 0.787 - UNF7/16-20 3/8L 1
AH208 BT40 - EMH 5/8 - 1.38 0.625 1.500 - 1.380 2.400 0.866 - UNF1/2-20 1/2L 1
AH210 BT40 - EMH 3/4 - 1.44 0.750 1.750 - 1.440 2.500 0.909 - UNF5/8-18 1/2L 1
AH214 BT40 - EMH 1 - 2.50 1.000 2.000 - 2.500 2.500 0.831 - UNF3/4-16 1/2L 1
AH217 BT40 - EMH 1 1/4 - 2.50 1.250 2.500 2.441 2.500 2.500 0.831 - UNF3/4-16 11/16L 2
STANDARD
AI002 50 BT50 - EMH 1/4 - 3.00 0.250 0.780 - 3.000 1.299 0.598 - UNF1/4-28 1/4L 3
AI004 BT50 - EMH 3/8 - 3.00 0.375 1.000 - 3.000 1.417 0.630 - UNF3/8-24 5/16L 3
AI006 BT50 - EMH 1/2 - 3.00 0.500 1.250 - 3.000 1.693 0.787 - UNF7/16-20 3/8L 3
AI008 BT50 - EMH 5/8 - 3.00 0.625 1.500 - 3.000 1.929 0.882 - UNF1/2-20 1/2L 3
AI010 BT50 - EMH 3/4 - 3.00 0.750 1.750 - 3.000 2.047 0.909 - UNF5/8-18 1/2L 3
AI012 BT50 - EMH 7/8 - 4.00 0.875 1.880 - 4.000 4.200 0.650 - UNF5/8-18 1/2L 4
AI014 BT50 - EMH 1 - 4.25 1.000 2.000 - 4.250 4.636 0.831 0.902 UNF3/4-16 1/2L 4
AI017 BT50 - EMH 1 1/4 - 4.25 1.250 2.500 - 4.250 4.000 0.831 0.902 UNF3/4-16 11/16L 4
AI021 BT50 - EMH 1 1/2 - 4.25 1.500 2.500 - 4.250 3.976 0.882 1.063 UNF3/4-16 1/2L 4
AI029 BT50 - EMH 2 - 5.00 2.000 3.750 - 5.000 5.000 1.299 1.358 UNS1-14 7/8L 4
EXTENDED
AI104 50 BT50 - EMH 3/8 - 6.00 0.375 1.000 - 6.000 1.417 0.630 - UNF3/8-24 5/16L 3
AI106 BT50 - EMH 1/2 - 6.00 0.500 1.250 - 6.000 1.693 0.787 - UNF7/16-20 3/8L 3
AI108 BT50 - EMH 5/8 - 6.00 0.625 1.500 - 6.000 1.929 0.882 - UNF1/2-20 1/2L 3
AI110 BT50 - EMH 3/4 - 6.00 0.750 1.750 - 6.000 2.047 0.909 - UNF5/8-18 1/2L 3
AI112 BT50 - EMH 7/8 - 6.00 0.875 1.880 - 6.000 4.200 0.650 - UNF5/8-18 1/2L 4
AI114 BT50 - EMH 1 - 6.00 1.000 2.000 - 6.000 4.636 0.831 0.902 UNF3/4-16 1/2L 4
AI117 BT50 - EMH 1 1/4 - 6.00 1.250 2.500 - 6.000 4.000 0.831 0.902 UNF3/4-16 11/16L 4
AI121 BT50 - EMH 1 1/2 - 6.00 1.500 2.500 - 6.000 3.976 0.882 1.063 UNF3/4-16 1/2L 4
AI129 BT50 - EMH 2 - 6.00 2.000 3.750 - 6.000 5.000 1.299 1.358 UNS1-14 7/8L 4
