Rotary Tooling Home >

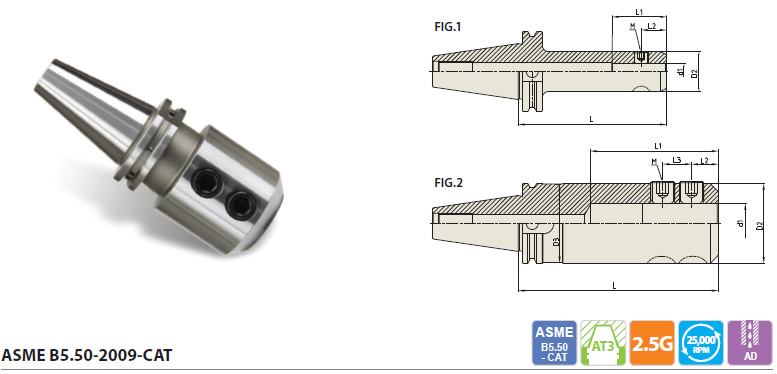

HIGH BALANCED END MILL HOLDER - EXTENDED - CAT - INCH

EDP No. TAPER No. MODEL No. d1 D2 D3 L L1 L2 L3 M FIG.
AK104B25 40 CAT40 - EMH 3/8 - 4.50 0.375 1.000 - 4.500 1.417 0.630 - UNF3/8-24 5/16L 1
AK106B25 CAT40 - EMH 1/2 - 4.63 0.500 1.250 - 4.630 1.693 0.787 - UNF7/16-20 3/8L 1
AK108B25 CAT40 - EMH 5/8 - 5.75 0.625 1.500 - 5.750 3.600 0.882 - UNF1/2-20 1/2L 1
AK110B25 CAT40 - EMH 3/4 - 5.75 0.750 1.750 - 5.750 3.900 0.909 - UNF5/8-18 1/2L 1
AK112B25 CAT40 - EMH 7/8 - 6.00 0.875 1.880 - 6.000 4.200 0.650 0.811 UNF5/8-18 1/2L 2
AK114B25 CAT40 - EMH 1 - 6.00 1.000 2.000 - 6.000 4.636 0.831 0.902 UNF3/4-16 1/2L 2
AK117B25 CAT40 - EMH 1 1/4 - 6.25 1.250 2.500 2.461 6.250 4.000 0.831 0.902 UNF3/4-16 11/16L 2
AK121B25 CAT40 - EMH 1 1/2 - 6.63 1.500 2.500 2.461 6.630 3.976 0.882 1.063 UNF3/4-16 1/2L 2
