HIGH BALANCED END MILL HOLDER - STUB - CAT - INCH

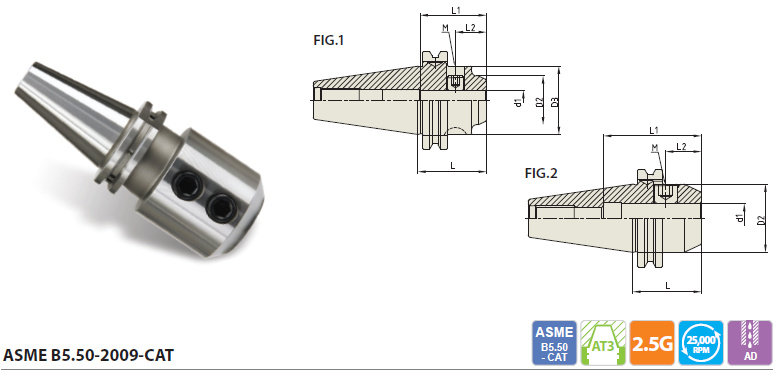

EDP No. TAPER No. MODEL No. d1 D2 D3 L L1 L2 M FIG.
AK206B25 40 CAT40 - EMH 1/2 - 1.75 0.500 1.250 1.750 1.750 1.693 0.787 UNF7/16-20 3/8L 1
AK208B25 CAT40 - EMH 5/8 - 1.75 0.625 1.500 1.750 1.750 1.929 0.882 UNF1/2-20 1/2L 1
AK210B25 CAT40 - EMH 3/4 - 1.75 0.750 1.750 - 1.750 2.047 0.909 UNF5/8-18 1/2L 2
AK214B25 CAT40 - EMH 1 - 1.75 1.000 1.750 - 1.750 2.165 0.831 UNF3/4-16 3/8L 2
AK217B25 CAT40 - EMH 1 1/4 - 2.00 1.250 2.250 - 2.000 2.221 0.831 UNF3/4-16 1/2L 2
