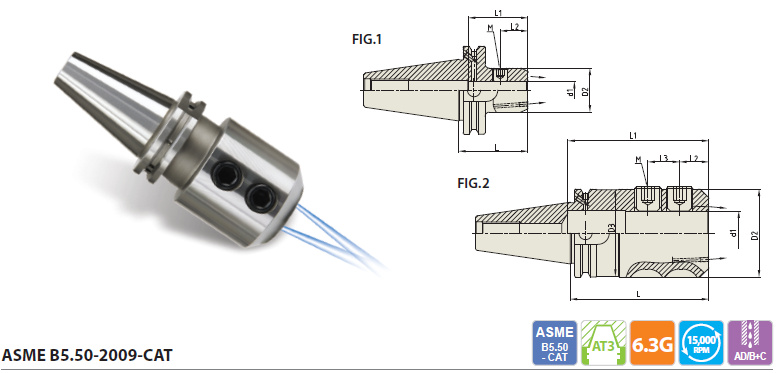

END MILL HOLDER (Coolant Channel) - CAT - INCH

EDP No. TAPER No. MODEL No. d1 D2 D3 L L1 L2 L3 M FIG.
AK002C 40 CAT40 AD/B - EMH 1/4C - 1.97 0.250 0.780 - 1.969 1.299 0.598 - UNF1/4-28 1/4L 1
AK003C CAT40 AD/B - EMH 5/16C - 1.97 0.313 0.880 - 1.969 1.359 0.630 - UNF5/16-24 1/4L 1
AK004C CAT40 AD/B - EMH 3/8C - 1.97 0.375 1.000 - 1.969 1.417 0.630 - UNF3/8-24 5/16L 1
AK005C CAT40 AD/B - EMH 1/2C - 1.97 0.500 1.250 - 1.969 1.693 0.787 - UNF7/16-20 3/8L 1
AK008C CAT40 AD/B - EMH 5/8C - 2.48 0.625 1.500 - 2.480 3.600 0.882 - UNF1/2-20 1/2L 1
AK010C CAT40 AD/B - EMH 3/4C - 2.48 0.750 1.750 - 2.480 3.900 0.909 - UNF5/8-18 1/2L 1
AK012C CAT40 AD/B - EMH 1C - 3.94 1.000 2.000 - 3.937 4.400 0.831 0.902 UNF3/4-16 1/2L 2
AK017C CAT40 AD/B - EMH 1 1/4C - 3.94 1.250 2.500 2.461 3.937 4.000 0.831 0.902 UNF3/4-16 11/16L 2
AL002C 50 CAT50 AD/B - EMH 1/4C - 2.48 0.250 0.780 - 2.480 1.299 0.591 - UNF1/4-28 1/4L 1
AL003C CAT50 AD/B - EMH 5/16C - 2.48 0.313 0.880 - 2.480 1.358 0.630 - UNF5/16-24 1/4L 1
AL004C CAT50 AD/B - EMH 3/8C - 2.48 0.375 1.000 - 2.480 1.417 0.630 - UNF3/8-24 5/16L 1
AL005C CAT50 AD/B - EMH 1/2C - 2.48 0.500 1.250 - 2.480 1.693 0.787 - UNF3/8-24 25/64L 1
AL008C CAT50 AD/B - EMH 5/8C - 2.48 0.625 1.500 - 2.480 1.890 0.882 - UNF1/2-20 1/2L 1
AL010C CAT50 AD/B - EMH 3/4C - 2.48 0.750 1.750 - 2.480 1.925 0.909 - UNF5/8-18 1/2L 1
AL012C CAT50 AD/B - EMH 1C - 3.15 1.000 2.000 - 3.150 4.400 0.831 0.902 UNF3/4-16 1/2L 2
AL017C CAT50 AD/B - EMH 1 1/4C - 3.94 1.250 2.500 - 3.937 4.000 0.831 0.902 UNF3/4-16 11/16L 2
