END MILL HOLDER - EXTENDED - CAT - INCH

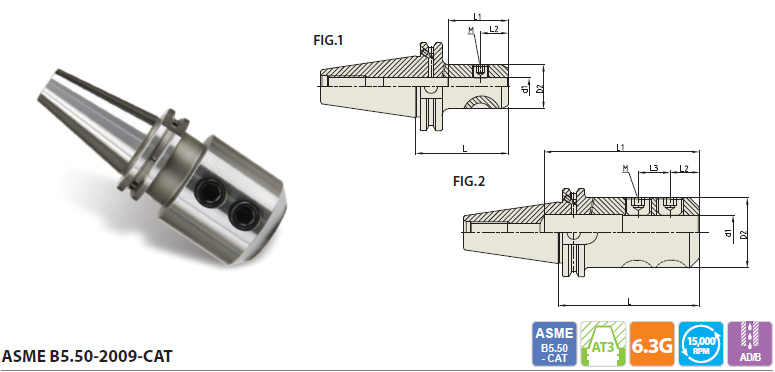

EDP No. TAPER No. MODEL No. d1 D2 D3 L L1 L2 L3 M FIG.
AK104B 40 CAT40 AD/B - EMH 3/8 - 4.50 0.375 1.000 - 4.500 1.417 0.630 - UNF3/8-24 5/16L 1
AK106B CAT40 AD/B - EMH 1/2 - 4.63 0.500 1.250 - 4.630 1.693 0.787 - UNF7/16-20 3/8L 1
AK108B CAT40 AD/B - EMH 5/8 - 5.75 0.625 1.500 - 5.750 3.600 0.881 - UNF1/2-20 1/2L 1
AK110B CAT40 AD/B - EMH 3/4 - 5.75 0.750 1.750 - 5.750 3.900 0.909 - UNF5/8-18 1/2L 1
AK112B CAT40 AD/B - EMH 7/8 - 6.00 0.875 1.880 - 6.000 4.200 0.650 0.811 UNF5/8-18 1/2L 2
AK114B CAT40 AD/B - EMH 1 - 6.00 1.000 2.000 - 6.000 4.400 0.831 0.902 UNF3/4-16 1/2L 2
AK117B CAT40 AD/B - EMH 1 1/4 - 6.25 1.250 2.500 2.461 6.250 4.000 0.831 0.902 UNF3/4-16 11/16L 2
AK121B CAT40 AD/B - EMH 1 1/2 - 6.63 1.500 2.500 2.461 6.630 3.978 0.881 1.063 UNF3/4-16 1/2L 2
AL104B 50 CAT50 AD/B - EMH 3/8 - 4.50 0.375 1.000 - 4.500 1.417 0.630 - UNF3/8-24 5/16L 1
AL106B CAT50 AD/B - EMH 1/2 - 4.63 0.500 1.250 - 4.630 1.693 0.787 - UNF7/16-20 3/8L 1
AL108B CAT50 AD/B - EMH 5/8 - 5.75 0.625 1.500 - 5.750 3.449 0.881 - UNF1/2-20 1/2L 1
AL110B CAT50 AD/B - EMH 3/4 - 5.75 0.750 1.750 - 5.750 3.203 0.909 - UNF5/8-18 1/2L 1
AL112B CAT50 AD/B - EMH 7/8 - 5.75 0.875 1.880 - 5.750 4.200 0.650 0.811 UNF5/8-18 1/2L 2
AL114B CAT50 AD/B - EMH 1 - 6.00 1.000 2.000 - 6.000 4.400 0.831 0.902 UNF3/4-16 1/2L 2
AL117B CAT50 AD/B - EMH 1 1/4 - 6.00 1.250 2.500 - 6.000 4.000 0.831 0.902 UNF3/4-16 11/16L 2
AL121B CAT50 AD/B - EMH 1 1/2 - 6.00 1.500 2.500 - 6.000 3.978 0.881 1.063 UNF3/4-16 1/2L 2
AL129B CAT50 AD/B - EMH 2 - 7.63 2.000 3.750 - 7.630 5.000 1.299 1.358 UNS1-14 7/8L 2
