Rotary Tooling Home >

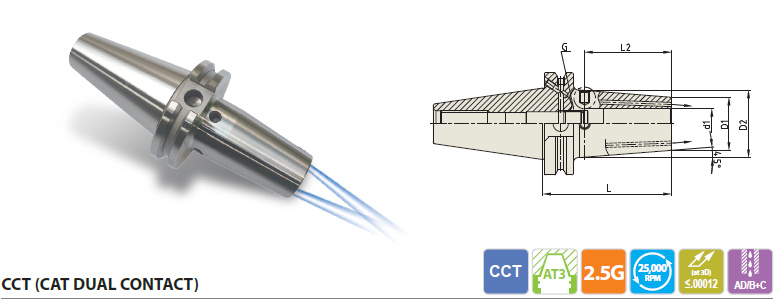

DUAL CONTACT SHRINK FIT HOLDER (Coolant Channel) - CCT50 - INCH

EDP No. TAPER No. MODEL No. d1 D1 D2 L L2 G
VC024J 50 CCT50 AD/B - SFH 1/4C - 3.15 0.250 0.827 1.063 3.150 1.417 M5x0.8mm
VC026J CCT50 AD/B - SFH 1/4C - 6.30 0.250 0.827 1.063 6.300 1.417 M5x0.8mm
VC028J CCT50 AD/B - SFH 3/8C - 3.15 0.375 0.945 1.260 3.150 1.634 M8x1.0mm
VC030J CCT50 AD/B - SFH 3/8C - 6.30 0.375 0.945 1.260 6.300 1.634 M8x1.0mm
VC032J CCT50 AD/B - SFH 1/2C - 3.15 0.500 0.945 1.260 3.150 1.929 M10x1.0mm
VC034J CCT50 AD/B - SFH 1/2C - 6.30 0.500 0.945 1.260 6.300 1.929 M10x1.0mm
VC036J CCT50 AD/B - SFH 5/8C - 3.15 0.625 1.063 1.339 3.150 2.047 M12x1.0mm
VC040J CCT50 AD/B - SFH 5/8C - 6.30 0.625 1.063 1.339 6.300 2.047 M12x1.0mm
VC042J CCT50 AD/B - SFH 3/4C - 3.15 0.750 1.299 1.654 3.150 2.126 M16x1.0mm
VC044J CCT50 AD/B - SFH 3/4C - 6.30 0.750 1.299 1.654 6.300 2.126 M16x1.0mm
VC046J CCT50 AD/B - SFH 1C - 3.94 1.000 1.732 2.087 3.940 2.362 M16x1.0mm
VC048J CCT50 AD/B - SFH 1C - 6.30 1.000 1.732 2.087 6.300 2.362 M16x1.0mm
VC050J CCT50 AD/B - SFH 1 1/4C - 3.94 1.250 1.732 2.087 3.940 2.362 M16x1.0mm
VC052J CCT50 AD/B - SFH 1 1/4C - 6.30 1.250 1.732 2.087 6.300 2.362 M16x1.0mm
