Rotary Tooling Home >

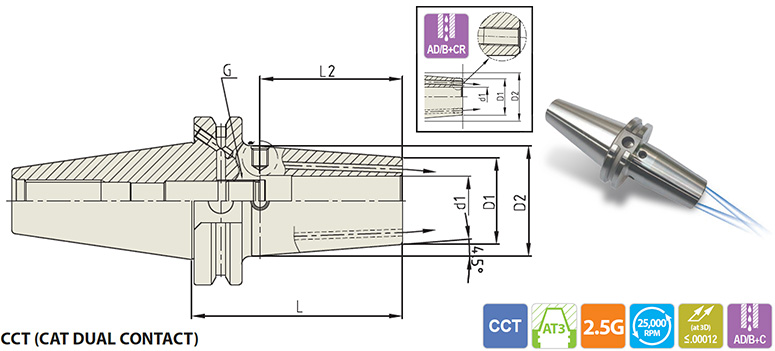

DUAL CONTACT SHRINK FIT HOLDER (Coolant Channel) - CCT40 - INCH

EDP No. TAPER No. MODEL No. d1 D1 D2 L L2 G
VB024J 40 CCT40 AD/B - SFH 1/4C - 3.15 0.250 0.827 1.063 3.150 1.417 M5x0.8mm
VB203JR CCT40 AD/B - SFH 1/4CR - 5.12 0.250 0.827 1.063 5.120 1.417 M5x0.8mm
VB026J CCT40 AD/B - SFH 1/4C - 6.30 0.250 0.827 1.063 6.300 1.417 M5x0.8mm
VB204JR CCT40 AD/B - SFH 5/16CR - 5.12 0.313 0.827 1.063 5.120 1.417 M6x1.0mm
VB028J CCT40 AD/B - SFH 3/8C - 3.15 0.375 0.945 1.260 3.150 1.713 M8x1.0mm
VB205JR CCT40 AD/B - SFH 3/8CR - 5.12 0.375 0.945 1.260 5.120 1.713 M8x1.0mm
VB030J CCT40 AD/B - SFH 3/8C - 6.30 0.375 0.945 1.260 6.300 1.713 M8x1.0mm
VB206JR CCT40 AD/B - SFH 7/16CR - 5.12 0.438 0.945 1.260 5.120 1.929 M10x1.0mm
VB032J CCT40 AD/B - SFH 1/2C - 3.15 0.500 0.945 1.260 3.150 1.929 M10x1.0mm
VB207JR CCT40 AD/B - SFH 1/2CR - 5.12 0.500 0.945 1.260 5.120 1.929 M10x1.0mm
VB034J CCT40 AD/B - SFH 1/2C - 6.30 0.500 0.945 1.260 6.300 1.929 M10x1.0mm
VB036J CCT40 AD/B - SFH 5/8C - 3.15 0.625 1.063 1.339 3.150 2.047 M12x1.0mm
VB208JR CCT40 AD/B - SFH 5/8CR - 5.12 0.625 1.063 1.339 5.120 2.047 M12x1.0mm
VB038J CCT40 AD/B - SFH 5/8C - 6.30 0.625 1.063 1.339 6.300 2.047 M12x1.0mm
VB040J CCT40 AD/B - SFH 3/4C - 3.15 0.750 1.299 1.654 3.150 2.126 M16x1.0mm
VB209JR CCT40 AD/B - SFH 3/4CR - 5.12 0.750 1.299 1.654 5.120 2.126 M16x1.0mm
VB042J CCT40 AD/B - SFH 3/4C - 6.30 0.750 1.299 1.654 6.300 2.126 M16x1.0mm
VB044J CCT40 AD/B - SFH 1C - 3.94 1.000 1.732 2.087 3.940 2.362 M16x1.0mm
VB210JR CCT40 AD/B - SFH 1CR - 5.12 1.000 1.732 2.087 5.120 2.362 M16x1.0mm
VB046J CCT40 AD/B - SFH 1C - 6.30 1.000 1.732 2.087 6.300 2.362 M16x1.0mm
VB048J CCT40 AD/B - SFH 1 1/4C - 3.94 1.250 1.732 2.087 3.940 2.362 M16x1.0mm
VB050J CCT40 AD/B - SFH 1 1/4C - 6.30 1.250 1.732 2.087 6.300 2.362 M16x1.0mm
