SHRINK FIT HOLDER (Coolant Channel) - CAT40 - INCH

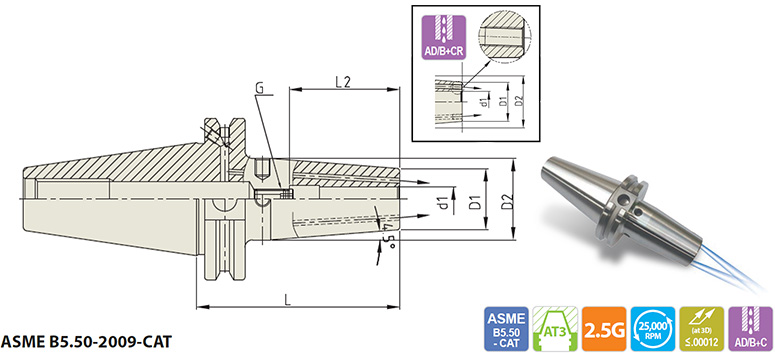

EDP No. TAPER No. MODEL No. d1 D1 D2 L L2 G
VK020J 40 CAT40 AD/B - SFH 1/8C -3.15 0.125 0.472 0.669 3.150 0.394 -
VK022J CAT40 AD/B - SFH 3/16C - 3.15 0.188 0.472 0.669 3.150 0.472 -
VK024J CAT40 AD/B - SFH 1/4C - 3.15 0.250 0.826 1.063 3.150 0.591 M5x0.8mm
VK221JR CAT40 AD/B - SFH 1/4CR - 5.12 0.250 0.827 1.063 5.120 1.417 M5x.8mm
VK222JR CAT40 AD/B - SFH 5/16CR - 5.12 0.313 0.827 1.063 5.120 1.417 M6x1.0mm
VK028J CAT40 AD/B - SFH 3/8C - 3.15 0.375 0.945 1.260 3.150 1.713 M8x1.0mm
VK219JR CAT40 AD/B - SFH 3/8CR - 5.12 0.375 0.945 1.260 5.120 1.713 M8x1.0mm
VK030J CAT40 AD/B - SFH 3/8C - 6.30 0.375 0.945 1.260 6.300 1.673 M8x1.0mm
VK223JR CAT40 AD/B - SFH 7/16CR - 5.12 0.438 0.945 1.260 5.120 1.929 M10x1.0mm
VK032J CAT40 AD/B - SFH 1/2C - 3.15 0.500 0.945 1.260 3.150 1.929 M10x1.0mm
VK220JR CAT40 AD/B - SFH 1/2CR - 5.12 0.500 0.945 1.260 5.120 1.929 M10x1.0mm
VK034J CAT40 AD/B - SFH 1/2C - 6.30 0.500 0.945 1.260 6.300 1.929 M10x1.0mm
VK036J CAT40 AD/B - SFH 5/8C - 3.15 0.625 1.063 1.339 3.150 2.047 M12x1.0mm
VK224JR CAT40 AD/B - SFH 5/8CR - 5.12 0.625 1.063 1.339 5.120 2.047 M12x1.0mm
VK038J CAT40 AD/B - SFH 5/8C - 6.30 0.625 1.063 1.339 6.300 2.047 M12x1.0mm
VK040J CAT40 AD/B - SFH 3/4C - 3.15 0.750 1.299 1.654 3.150 2.126 M16x1.0mm
VK225JR CAT40 AD/B - SFH 3/4CR - 5.12 0.750 1.299 1.654 5.120 2.126 M16x1.0mm
VK042J CAT40 AD/B - SFH 3/4C - 6.30 0.750 1.299 1.654 6.300 2.126 M16x1.0mm
VK044J CAT40 AD/B - SFH 1C - 3.94 1.000 1.732 2.087 3.940 2.362 M16x1.0mm
VK226JR CAT40 AD/B - SFH 1CR - 5.12 1.000 1.732 2.087 5.120 2.362 M16x1.0mm
VK046J CAT40 AD/B - SFH 1C - 6.30 1.000 1.732 2.087 6.300 2.362 M16x1.0mm
VK048J CAT40 AD/B - SFH 1 1/4C - 3.94 1.250 1.732 2.087 3.940 2.362 M16x1.0mm
VK050J CAT40 AD/B - SFH 1 1/4C - 6.30 1.250 1.732 2.087 6.300 2.362 M16x1.0mm
