Rotary Tooling Home >

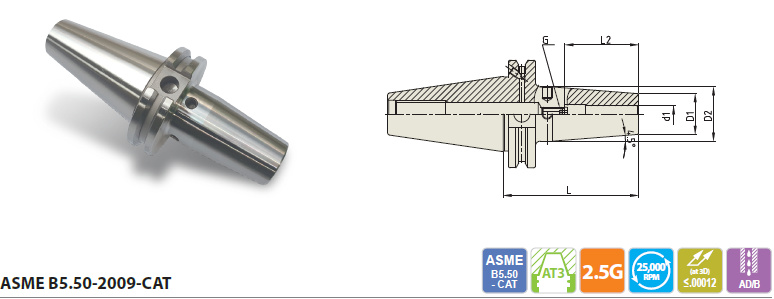

SHRINK FIT HOLDER - CAT40 - INCH

EDP No. TAPER No. MODEL No. d1 D1 D2 L L2 G
VK020 40 CAT40 AD/B - SFH 1/8 - 3.15 0.125 0.394 0.748 3.150 0.354 -
VK228 CAT40 AD/B - SFH 1/8 - 5.12 0.125 0.394 0.748 5.120 0.354 -
VK022 CAT40 AD/B - SFH 3/16 - 3.15 0.188 0.394 0.748 3.150 0.472 -
VK024 CAT40 AD/B - SFH 1/4 - 3.15 0.250 0.827 1.063 3.150 1.417 M5x.8mm
VK026 CAT40 AD/B - SFH 1/4 - 6.30 0.250 0.827 1.063 6.300 1.417 M5x.8mm
VK028 CAT40 AD/B - SFH 3/8 - 3.15 0.375 0.945 1.260 3.150 1.713 M8x1.0mm
VK030 CAT40 AD/B - SFH 3/8 - 6.30 0.375 0.945 1.260 6.300 1.713 M8x1.0mm
VK032 CAT40 AD/B - SFH 1/2 - 3.15 0.500 0.945 1.260 3.150 1.890 M10x1.0mm
VK034 CAT40 AD/B - SFH 1/2 - 6.30 0.500 0.945 1.260 6.300 1.929 M10x1.0mm
VK036 CAT40 AD/B - SFH 5/8 - 3.15 0.625 1.063 1.339 3.150 2.047 M12x1.0mm
VK038 CAT40 AD/B - SFH 5/8 - 6.30 0.625 1.063 1.339 6.300 2.047 M12x1.0mm
VK040 CAT40 AD/B - SFH 3/4 - 3.15 0.750 1.299 1.654 3.150 2.126 M16x1.0mm
VK042 CAT40 AD/B - SFH 3/4 - 6.30 0.750 1.299 1.654 6.300 2.126 M16x1.0mm
VK044 CAT40 AD/B - SFH 1 - 3.94 1.000 1.732 2.087 3.937 2.362 M16x1.0mm
VK046 CAT40 AD/B - SFH 1 - 6.30 1.000 1.732 2.087 6.300 2.362 M16x1.0mm
VK048 CAT40 AD/B - SFH 1 1/4 - 3.94 1.250 1.732 2.087 3.937 2.362 M16x1.0mm
VK050 CAT40 AD/B - SFH 1 1/4 - 6.30 1.250 1.732 2.087 6.300 2.362 M16x1.0mm
