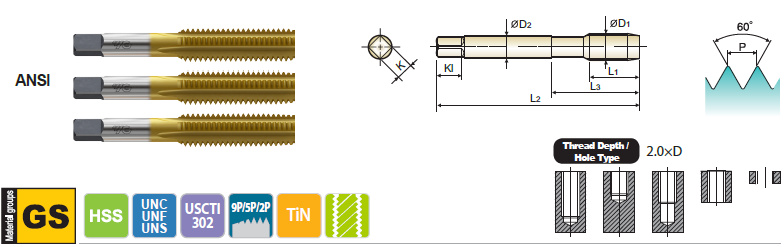

Size	T.P.I	EDP No.			Limit	Overall Length	Thread Length	Neck Length	Shank Diameter	Square Size	Square Length	No. of Flute
Size		TiN				Overall Length	Thread Length	Neck Length	Shank Diameter	Square Size	Square Length
D1		Taper	Plug	Bottoming		L2	L1	L3	D2	K	Kl
#0	80UNF	-	T8316027	T8316028	H1	1.634	0.315	0.512	0.141	0.110	0.190	2
#1	64UNC	-	T8316047	T8316048	H1	1.693	0.374	0.571	0.141	0.110	0.190	2
#1	72UNF	-	T8316067	T8316068	H1	1.693	0.374	0.571	0.141	0.110	0.190	2
#2	56UNC	-	T8316087	T8316088	H2	1.752	0.433	0.650	0.141	0.110	0.190	3
#4	40UNC	-	T8316167	T8316168	H2	1.874	0.563	0.799	0.141	0.110	0.190	3
#5	40UNC	-	T8316207	T8316208	H2	1.937	0.626	0.882	0.141	0.110	0.190	3
#6	32UNC	-	T8316247	T8316248	H3	2.000	0.689	0.965	0.141	0.110	0.190	3
#6	40UNF	-	T8316267	T8316268	H2	2.000	0.689	0.965	0.141	0.110	0.190	3
#8	32UNC	-	T8316287	T8316288	H3	2.126	0.752	1.047	0.168	0.131	0.250	4
#8	36UNF	-	T8316307	T8316308	H2	2.126	0.752	1.047	0.168	0.131	0.250	4
#10	24UNC	-	T8316327	T8316328	H3	2.374	0.906	1.220	0.194	0.152	0.250	4
#10	32UNF	-	T8316347	T8316348	H3	2.374	0.906	1.220	0.194	0.152	0.250	4
#12	24UNC	-	T8316367	T8316368	H3	2.374	0.906	1.220	0.220	0.165	0.280	4
#12	28UNF	-	T8316387	T8316388	H3	2.374	0.906	1.220	0.220	0.165	0.280	4
1/4	20UNC	-	T8316407	T8316408	H3	2.500	1.000	1.354	0.255	0.191	0.310	4
1/4	28UNF	-	T8316427	T8316428	H3	2.500	1.000	1.354	0.255	0.191	0.310	4
5/16	18UNC	-	T8316447	T8316448	H3	2.720	1.126	1.500	0.318	0.238	0.380	4
5/16	24UNF	-	T8316467	T8316468	H3	2.720	1.126	1.500	0.318	0.238	0.380	4
3/8	16UNC	-	T8316487	T8316488	H3	2.937	1.252	1.646	0.381	0.286	0.440	4
3/8	24UNF	-	T8316507	T8316508	H3	2.937	1.252	1.646	0.381	0.286	0.440	4
7/16	14UNC	-	T8316527	T8316528	H3	3.157	1.437	-	0.323	0.242	0.410	4
7/16	20UNF	-	T8316547	T8316548	H3	3.157	1.437	-	0.323	0.242	0.410	4
1/2	13UNC	-	T8316567	T8316568	H3	3.374	1.657	-	0.367	0.275	0.440	4
1/2	20UNF	-	T8316587	T8316588	H3	3.374	1.657	-	0.367	0.275	0.440	4
9/16	12UNC	-	T8316607	T8316608	H3	3.594	1.657	-	0.429	0.322	0.500	4
9/16	18UNF	-	T8316627	T8316628	H3	3.594	1.657	-	0.429	0.322	0.500	4
5/8	11UNC	-	T8316647	T8316648	H3	3.811	1.811	-	0.480	0.360	0.560	4
5/8	18UNF	-	T8316667	T8316668	H3	3.811	1.811	-	0.480	0.360	0.560	4
3/4	10UNC	-	T8316707	T8316708	H3	4.252	2.000	-	0.590	0.442	0.690	4
3/4	16UNF	-	T8316727	T8316728	H3	4.252	2.000	-	0.590	0.442	0.690	4
7/8	9UNC	-	T8316747	T8316748	H4	4.689	2.220	-	0.697	0.523	0.750	4
7/8	14UNF	-	T8316767	T8316768	H4	4.689	2.220	-	0.697	0.523	0.750	4
1	8UNC	-	T8316787	T8316788	H4	5.126	2.500	-	0.800	0.600	0.810	4
1	12UNF	-	T8316807	T8316808	H4	5.126	2.500	-	0.800	0.600	0.810	4
1	14UNS	-	T8316817	T8316818	H4	5.126	2.500	-	0.800	0.600	0.810	4
1-1/8	7UNC	-	T8316827	T8316828	H4	5.437	2.563	-	0.896	0.672	0.880	4
1-1/8	12UNF	-	T8316847	T8316848	H4	5.437	2.563	-	0.896	0.672	0.880	4
1-1/4	7UNC	-	T8316867	T8316868	H4	5.752	2.563	-	1.021	0.766	1.000	4
1-1/4	12UNF	-	T8316887	T8316888	H4	5.752	2.563	-	1.021	0.766	1.000	6
1-3/8	6UNC	-	T8316907	T8316908	H4	6.063	3.000	-	1.108	0.831	1.060	4
1-3/8	12UNF	-	T8316927	T8316928	H4	6.063	3.000	-	1.108	0.831	1.060	6
1-1/2	6UNC	-	T8316947	T8316948	H4	6.374	3.000	-	1.233	0.925	1.130	4
1-1/2	12UNF	-	T8316967	T8316968	H4	6.374	3.000	-	1.233	0.925	1.130	6
