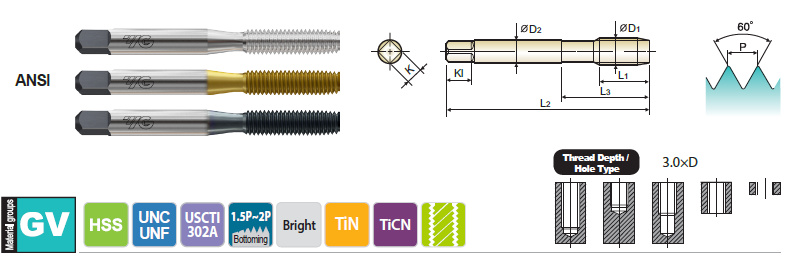

Forming Tap Bottoming Style for General Purpose - T7R02 / T8R02 / THR02 SERIES

Size T.P.I EDP No. Limit Overall Length Thread Length Neck Length Shank Diameter Square Size Square Length No. of Lobe
Bottoming
D1 Bright TiN TiCN L2 L1 L3 D2 K Kl
#0 80UNF T7R02022 T8R02022 THR02022 H2 1.634 0.315 0.512 0.141 0.110 0.190 4
#2 56UNC T7R02082 T8R02082 THR02082 H2 1.752 0.433 0.650 0.141 0.110 0.190 4
#3 48UNC T7R02123 T8R02123 THR02123 H3 1.811 0.492 0.728 0.141 0.110 0.190 4
#4 40UNC T7R02163 T8R02163 THR02163 H3 1.874 0.563 0.799 0.141 0.110 0.190 4
#5 40UNC T7R02203 T8R02203 THR02203 H3 1.937 0.626 0.882 0.141 0.110 0.190 4
#6 32UNC T7R02243 T8R02243 THR02243 H3 2.000 0.480 0.689 0.141 0.110 0.190 4
#8 32UNC T7R02283 T8R02283 THR02283 H3 2.126 0.500 0.752 0.168 0.131 0.250 4
#10 24UNC T7R02324 T8R02324 THR02324 H4 2.374 0.630 0.906 0.194 0.152 0.250 4
#10 32UNF T7R02344 T8R02344 THR02344 H4 2.374 0.630 0.906 0.194 0.152 0.250 4
1/4 20UNC T7R02404 T8R02404 THR02404 H4 2.500 0.858 1.000 0.255 0.191 0.310 4
1/4 28UNF T7R02424 T8R02424 THR02424 H4 2.500 0.858 1.000 0.255 0.191 0.310 4
5/16 18UNC T7R02445 T8R02445 THR02445 H5 2.720 0.929 1.126 0.318 0.238 0.380 4
3/8 16UNC T7R02485 T8R02485 THR02485 H5 2.937 0.980 1.252 0.381 0.286 0.440 4
