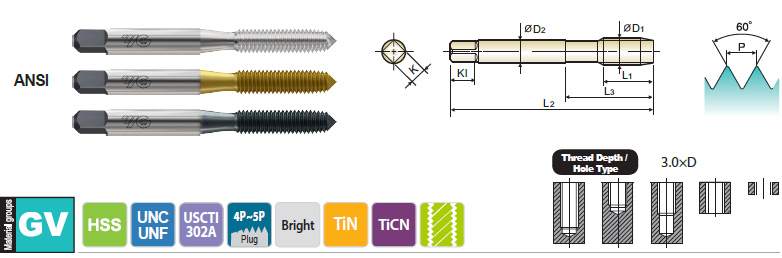

Forming Tap Plug Style for General Purpose - T7R01 / T8R01 / THR01 SERIES

Size T.P.I EDP No. Limit Overall Length Thread Length Neck Length Shank Diameter Square Size Square Length No. of Lobe
Plug
D1 Bright TiN TiCN L2 L1 L3 D2 K Kl
#4 40UNC T7R01163 T8R01163 THR01163 H3 1.874 0.563 0.799 0.141 0.110 0.190 4
#5 40UNC T7R01203 T8R01203 THR01203 H3 1.937 0.626 0.882 0.141 0.110 0.190 4
#6 32UNC T7R01243 T8R01243 THR01243 H3 2.000 0.480 0.689 0.141 0.110 0.190 4
#8 32UNC T7R01283 T8R01283 THR01283 H3 2.126 0.500 0.752 0.168 0.131 0.250 4
#10 24UNC T7R01324 T8R01324 THR01324 H4 2.374 0.630 0.906 0.194 0.152 0.250 4
#10 32UNF T7R01344 T8R01344 THR01344 H4 2.374 0.630 0.906 0.194 0.152 0.250 4
1/4 20UNC T7R01404 T8R01404 THR01404 H4 2.500 0.858 1.000 0.255 0.191 0.310 4
1/4 28UNF T7R01424 T8R01424 THR01424 H4 2.500 0.858 1.000 0.255 0.191 0.310 4
5/16 18UNC T7R01445 T8R01445 THR01445 H5 2.720 0.929 1.126 0.318 0.238 0.380 4
3/8 16UNC T7R01485 T8R01485 THR01485 H5 2.937 0.980 1.252 0.381 0.286 0.440 4
