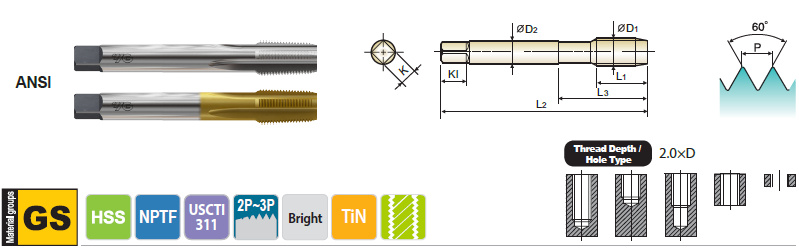

Taper Pipe Tap : Straight Flute Standard Projection 6" Extension for General Purpose - T7546 / T8546 SERIES

Size T.P.I EDP No. Overall Length Thread Length Neck Length Shank Diameter Square Size Square Length No. of Flute
D1 Bright TiN L2 L1 L3 D2 K KI
NPTF1/8 27 T7546200 T8546200 6.000 0.736 1.339 0.437 0.328 0.380 4
NPTF1/4 18 T7546400 T8546400 6.000 1.063 1.732 0.562 0.421 0.440 4
NPTF3/8 18 T7546480 T8546480 6.000 1.063 1.732 0.700 0.531 0.500 4
NPTF1/2 14 T7546560 T8546560 6.000 1.378 - 0.687 0.515 0.630 4
NPTF3/4 14 T7546700 T8546700 6.000 1.378 - 0.906 0.679 0.690 5
NPTF1 11-1/2 T7546780 T8546780 6.000 1.752 - 1.125 0.843 0.810 5
