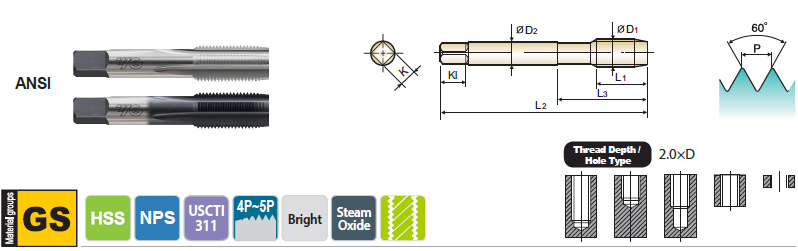

Straight Pipe Tap for General Purpose - T7L36 / T6L36 SERIES

Size T.P.I EDP No. Overall Length Thread Length Neck Length Shank Diameter Square Size Square Length No. of Flute
D1 Bright Steam Oxide L2 L1 L3 D2 K KI
NPS1/8 27 T7L36200 T6L36200 2.130 0.736 0.906 0.437 0.328 0.380 4
NPS1/8 27 T7L36210 T6L36210 2.130 0.748 - 0.312 0.234 0.380 4
NPS1/4 18 T7L36400 T6L36400 2.440 1.063 1.220 0.562 0.421 0.440 4
NPS3/8 18 T7L36480 T6L36480 2.560 1.063 1.220 0.700 0.531 0.500 4
NPS1/2 14 T7L36560 T6L36560 3.130 1.378 - 0.687 0.515 0.630 4
NPS3/4 14 T7L36700 T6L36700 3.250 1.378 - 0.906 0.679 0.690 5
NPS1 11-1/2 T7L36780 T6L36780 3.750 1.752 - 1.125 0.843 0.810 5
