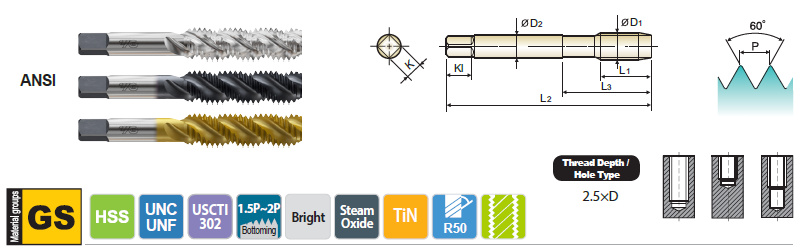

Spiral Flute Tap for General Purpose - T7295 / T6295 / T8295 SERIES

Size T.P.I EDP No. Limit Overall Length Thread Length Neck Length Shank Diameter Square Size Square Length No. of Flute
D1 Bright Steam Oxide TiN L2 L1 L3 D2 K KI
#3 48UNC T7295122 T6295122 T8295122 H2 1.811 0.492 0.728 0.141 0.110 0.190 2
#4 40UNC T7295162 T6295162 T8295162 H2 1.874 0.563 0.799 0.141 0.110 0.190 2
#5 40UNC T7295202 T6295202 T8295202 H2 1.937 0.626 0.882 0.141 0.110 0.190 2
#6 32UNC T7295242 T6295242 T8295242 H2 2.000 0.689 0.965 0.141 0.110 0.190 2
#6 32UNC T7295243 T6295243 T8295243 H3 2.000 0.689 0.965 0.141 0.110 0.190 2
#8 32UNC T7295282 T6295282 T8295282 H2 2.126 0.752 1.047 0.168 0.131 0.250 3
#8 32UNC T7295283 T6295283 T8295283 H3 2.126 0.752 1.047 0.168 0.131 0.250 3
#10 24UNC T7295323 T6295323 T8295323 H3 2.374 0.906 1.220 0.194 0.152 0.250 3
#10 32UNF T7295342 T6295342 T8295342 H2 2.374 0.906 1.220 0.194 0.152 0.250 3
#10 32UNF T7295343 T6295343 T8295343 H3 2.374 0.906 1.220 0.194 0.152 0.250 3
#12 24UNC T7295363 T6295363 T8295363 H3 2.374 0.906 1.220 0.220 0.165 0.280 3
1/4 20UNC T7295403 T6295403 T8295403 H3 2.500 1.000 1.354 0.255 0.191 0.310 3
1/4 20UNC T7295405 T6295405 T8295405 H5 2.500 1.000 1.354 0.255 0.191 0.310 3
1/4 28UNF T7295423 T6295423 T8295423 H3 2.500 1.000 1.354 0.255 0.191 0.310 3
5/16 18UNC T7295443 T6295443 T8295443 H3 2.720 1.126 1.500 0.318 0.238 0.380 3
5/16 18UNC T7295445 T6295445 T8295445 H5 2.720 1.126 1.500 0.318 0.238 0.380 3
5/16 24UNF T7295463 T6295463 T8295463 H3 2.720 1.126 1.500 0.318 0.238 0.380 3
3/8 16UNC T7295483 T6295483 T8295483 H3 2.937 1.252 1.646 0.381 0.286 0.440 3
3/8 16UNC T7295485 T6295485 T8295485 H5 2.937 1.252 1.646 0.381 0.286 0.440 3
3/8 24UNF T7295503 T6295503 T8295503 H3 2.937 1.252 1.646 0.381 0.286 0.440 3
7/16 14UNC T7295523 T6295523 T8295523 H3 3.157 1.437 - 0.323 0.242 0.410 3
7/16 14UNC T7295525 T6295525 T8295525 H5 3.157 1.437 - 0.323 0.242 0.410 3
7/16 20UNF T7295543 T6295543 T8295543 H3 3.157 1.437 - 0.323 0.242 0.410 3
1/2 13UNC T7295563 T6295563 T8295563 H3 3.374 1.657 - 0.367 0.275 0.440 3
1/2 13UNC T7295565 T6295565 T8295565 H5 3.374 1.657 - 0.367 0.275 0.440 3
1/2 20UNF T7295583 T6295583 T8295583 H3 3.374 1.657 - 0.367 0.275 0.440 3
5/8 11UNC T7295643 T6295643 T8295643 H3 3.811 1.811 - 0.480 0.360 0.560 4
5/8 18UNF T7295663 T6295663 T8295663 H3 3.811 1.811 - 0.480 0.360 0.560 4
3/4 10UNC T7295703 T6295703 T8295703 H3 4.252 2.000 - 0.590 0.442 0.690 4
3/4 16UNF T7295723 T6295723 T8295723 H3 4.252 2.000 - 0.590 0.442 0.690 4
