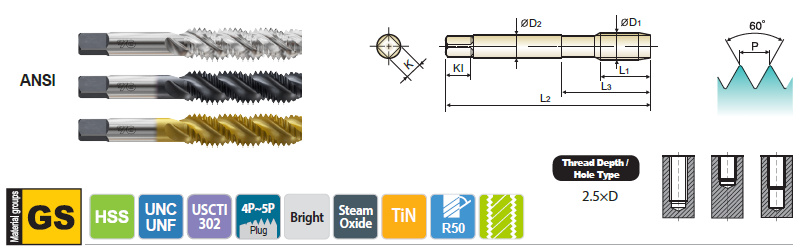

Spiral Flute Tap for General Purpose - T7A96 / T6A96 / T8A96 SERIES

Size T.P.I EDP No. Limit Overall Length Thread Length Neck Length Shank Diameter Square Size Square Length No. of Flute
D1 Bright Steam Oxide TiN L2 L1 L3 D2 K KI
#3 48UNC T7A96122 T6A96122 T8A96122 H2 1.811 0.492 0.728 0.141 0.110 0.190 2
#4 40UNC T7A96162 T6A96162 T8A96162 H2 1.874 0.563 0.799 0.141 0.110 0.190 2
#5 40UNC T7A96202 T6A96202 T8A96202 H2 1.937 0.626 0.882 0.141 0.110 0.190 2
#6 32UNC T7A96242 T6A96242 T8A96242 H2 2.000 0.689 0.965 0.141 0.110 0.190 2
#6 32UNC T7A96243 T6A96243 T8A96243 H3 2.000 0.689 0.965 0.141 0.110 0.190 2
#8 32UNC T7A96282 T6A96282 T8A96282 H2 2.126 0.752 1.047 0.168 0.131 0.250 3
#8 32UNC T7A96283 T6A96283 T8A96283 H3 2.126 0.752 1.047 0.168 0.131 0.250 3
#10 24UNC T7A96323 T6A96323 T8A96323 H3 2.374 0.906 1.220 0.194 0.152 0.250 3
#10 32UNF T7A96342 T6A96342 T8A96342 H2 2.374 0.906 1.220 0.194 0.152 0.250 3
#10 32UNF T7A96343 T6A96343 T8A96343 H3 2.374 0.906 1.220 0.194 0.152 0.250 3
#12 24UNC T7A96363 T6A96363 T8A96363 H3 2.374 0.906 1.220 0.220 0.165 0.280 3
1/4 20UNC T7A96403 T6A96403 T8A96403 H3 2.500 1.000 1.354 0.255 0.191 0.310 3
1/4 20UNC T7A96405 T6A96405 T8A96405 H5 2.500 1.000 1.354 0.255 0.191 0.310 3
1/4 28UNF T7A96423 T6A96423 T8A96423 H3 2.500 1.000 1.354 0.255 0.191 0.310 3
5/16 18UNC T7A96443 T6A96443 T8A96443 H3 2.720 1.126 1.500 0.318 0.238 0.380 3
5/16 18UNC T7A96445 T6A96445 T8A96445 H5 2.720 1.126 1.500 0.318 0.238 0.380 3
5/16 24UNF T7A96463 T6A96463 T8A96463 H3 2.720 1.126 1.500 0.318 0.238 0.380 3
3/8 16UNC T7A96483 T6A96483 T8A96483 H3 2.937 1.252 1.646 0.381 0.286 0.440 3
3/8 16UNC T7A96485 T6A96485 T8A96485 H5 2.937 1.252 1.646 0.381 0.286 0.440 3
3/8 24UNF T7A96503 T6A96503 T8A96503 H3 2.937 1.252 1.646 0.381 0.286 0.440 3
7/16 14UNC T7A96523 T6A96523 T8A96523 H3 3.157 1.437 - 0.323 0.242 0.410 3
7/16 20UNF T7A96543 T6A96543 T8A96543 H3 3.157 1.437 - 0.323 0.242 0.410 3
1/2 13UNC T7A96563 T6A96563 T8A96563 H3 3.374 1.657 - 0.367 0.275 0.440 3
1/2 13UNC T7A96565 T6A96565 T8A96565 H5 3.374 1.657 - 0.367 0.275 0.440 3
1/2 20UNF T7A96583 T6A96583 T8A96583 H3 3.374 1.657 - 0.367 0.275 0.440 3
5/8 11UNC T7A96643 T6A96643 T8A96643 H3 3.811 1.811 - 0.480 0.360 0.560 4
5/8 18UNF T7A96663 T6A96663 T8A96663 H3 3.811 1.811 - 0.480 0.360 0.560 4
3/4 10UNC T7A96703 T6A96703 T8A96703 H3 4.252 2.000 - 0.590 0.442 0.690 4
3/4 16UNF T7A96723 T6A96723 T8A96723 H3 4.252 2.000 - 0.590 0.442 0.690 4
