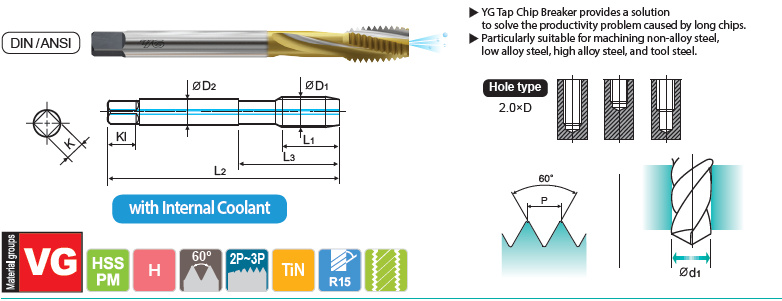

SPIRAL FLUTE TAPS with CHIP BREAKER - TTF23

SIZE TPI EDP No. Limits Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute Tapping Drill Diameter (Ød1)
ØD1 L1 L2 L3 ØD2 K KI Z Inch Metric
1/4 20 TTF23403R H3 0.500 3.15 1.177 0.255 0.191 0.310 3 - 5.2
1/4 20 TTF23405R H5 0.500 3.15 1.177 0.255 0.191 0.310 3 - 5.2
1/4 28 TTF23423R H3 0.358 3.15 1.177 0.255 0.191 0.310 3 - 5.5
1/4 28 TTF23424R H4 0.358 3.15 1.177 0.255 0.191 0.310 3 - 5.5
5/16 18 TTF23443R H3 0.555 3.54 1.378 0.318 0.238 0.380 3 - 6.7
5/16 18 TTF23445R H5 0.555 3.54 1.378 0.318 0.238 0.380 3 - 6.7
5/16 24 TTF23463R H3 0.417 3.54 1.378 0.318 0.238 0.380 3 - 7.0
5/16 24 TTF23464R H4 0.417 3.54 1.378 0.318 0.238 0.380 3 - 7.0
3/8 16 TTF23483R H3 0.626 3.94 1.535 0.381 0.286 0.440 3 - 8.1
3/8 16 TTF23485R H5 0.626 3.94 1.535 0.381 0.286 0.440 3 - 8.1
3/8 24 TTF23503R H3 0.417 3.94 1.535 0.381 0.286 0.440 3 - 8.6
3/8 24 TTF23504R H4 0.417 3.94 1.535 0.381 0.286 0.440 3 - 8.6
7/16 14 TTF23523R H3 0.713 3.94 1.713 0.323 0.242 0.394 3 - 9.5
7/16 14 TTF23525R H5 0.713 3.94 1.713 0.323 0.242 0.394 3 - 9.5
7/16 20 TTF23543R H3 0.500 3.94 1.713 0.323 0.242 0.394 3 - 10.0
7/16 20 TTF23545R H5 0.500 3.94 1.713 0.323 0.242 0.394 3 - 10.0
1/2 13 TTF23563R H3 0.768 4.33 1.933 0.367 0.275 0.440 3 - 11.0
1/2 13 TTF23565R H5 0.768 4.33 1.933 0.367 0.275 0.440 3 - 11.0
1/2 20 TTF23583R H3 0.500 3.94 1.933 0.367 0.275 0.440 3 - 11.6
1/2 20 TTF23585R H5 0.500 3.94 1.933 0.367 0.275 0.440 3 - 11.6
9/16 12 TTF23603R H3 0.835 4.33 1.972 0.429 0.322 0.500 3 - 12.5
9/16 12 TTF23605R H5 0.835 4.33 1.972 0.429 0.322 0.500 3 - 12.5
9/16 18 TTF23623R H3 0.555 3.94 1.972 0.429 0.322 0.500 3 - 13.0
9/16 18 TTF23625R H5 0.555 3.94 1.972 0.429 0.322 0.500 3 - 13.0
5/8 11 TTF23643R H3 0.909 4.33 2.126 0.480 0.360 0.560 3 - 13.9
5/8 11 TTF23645R H5 0.909 4.33 2.126 0.480 0.360 0.560 3 - 13.9
5/8 18 TTF23663R H3 0.555 3.94 2.126 0.480 0.360 0.560 3 - 14.6
5/8 18 TTF23665R H5 0.555 3.94 2.126 0.480 0.360 0.560 3 - 14.6
3/4 10 TTF23703R H3 1.000 4.92 2.433 0.590 0.442 0.673 4 - 16.9
3/4 10 TTF23705R H5 1.000 4.92 2.433 0.590 0.442 0.673 4 - 16.9
3/4 16 TTF23723R H3 0.626 4.33 2.433 0.590 0.442 0.673 4 - 17.7
3/4 16 TTF23725R H5 0.626 4.33 2.433 0.590 0.442 0.673 4 - 17.7
7/8 9 TTF23744R H4 1.110 5.51 2.654 0.697 0.523 0.736 4 - 19.8
7/8 9 TTF23746R H6 1.110 5.51 2.654 0.697 0.523 0.736 4 - 19.8
7/8 14 TTF23764R H4 0.713 4.92 2.654 0.697 0.523 0.736 4 - 20.5
7/8 14 TTF23766R H6 0.713 4.92 2.654 0.697 0.523 0.736 4 - 20.5
1" 8 TTF23784R H4 1.252 6.30 3.012 0.800 0.600 0.800 4 - 22.7
1" 8 TTF23786R H6 1.252 6.30 3.012 0.800 0.600 0.800 4 - 22.7
1" 12 TTF23804R H4 0.835 5.51 3.012 0.800 0.600 0.800 4 - 23.5
1" 12 TTF23806R H6 0.835 5.51 3.012 0.800 0.600 0.800 4 - 23.5
