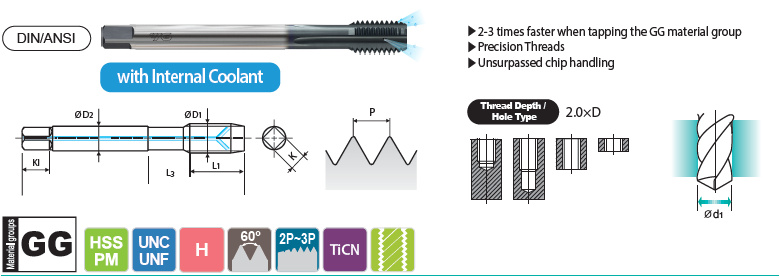

Straight Flute Tap for High Speed Tapping - TKS89 SERIES

Size Pitch EDP No. Limit Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute Tapping Drill Diameter (Ød1)
D1 P TiCN L1 L2 L3 D2 K Kl Z Inch Metric
1/4 20 TKS89403RCP H3 0.499 3.14 1.179 0.255 0.191 0.31 3 - 5.2
1/4 20 TKS89405RCP H5 0.499 3.14 1.179 0.255 0.191 0.31 3 - 5.2
1/4 28 TKS89423RCP H3 0.358 3.14 1.179 0.255 0.191 0.31 3 - 5.5
1/4 28 TKS89424RCP H4 0.358 3.14 1.179 0.255 0.191 0.31 3 - 5.5
5/16 18 TKS89443RCP H3 0.558 3.54 1.376 0.318 0.238 0.38 3 - 6.7
5/16 18 TKS89445RCP H5 0.558 3.54 1.376 0.318 0.238 0.38 3 - 6.7
5/16 24 TKS89463RCP H3 0.417 3.54 1.376 0.318 0.238 0.38 3 - 7.0
5/16 24 TKS89464RCP H4 0.417 3.54 1.376 0.318 0.238 0.38 3 - 7.0
3/8 16 TKS89483RCP H3 0.625 3.93 1.533 0.381 0.286 0.44 4 - 8.1
3/8 16 TKS89485RCP H5 0.625 3.93 1.533 0.381 0.286 0.44 4 - 8.1
3/8 24 TKS89503RCP H3 0.417 3.93 1.533 0.381 0.286 0.44 4 - 8.6
3/8 24 TKS89504RCP H4 0.417 3.93 1.533 0.381 0.286 0.44 4 - 8.6
7/16 14 TKS89523RCP H3 0.715 3.93 1.847 0.323 0.242 0.41 4 - 9.5
7/16 14 TKS89525RCP H5 0.715 3.93 1.847 0.323 0.242 0.41 4 - 9.5
7/16 20 TKS89543RCP H3 0.499 3.93 1.847 0.323 0.242 0.41 4 - 10.0
7/16 20 TKS89545RCP H5 0.499 3.93 1.847 0.323 0.242 0.41 4 - 10.0
1/2 13 TKS89563RCP H3 0.770 4.32 2.064 0.367 0.275 0.44 4 - 11.0
1/2 13 TKS89565RCP H5 0.770 4.32 2.064 0.367 0.275 0.44 4 - 11.0
1/2 20 TKS89583RCP H3 0.499 3.93 2.064 0.367 0.275 0.44 4 - 11.6
1/2 20 TKS89585RCP H5 0.499 3.93 2.064 0.367 0.275 0.44 4 - 11.6
9/16 12 TKS89603RCP H3 0.833 4.32 2.064 0.429 0.322 0.50 4 - 12.5
9/16 12 TKS89605RCP H5 0.833 4.32 2.064 0.429 0.322 0.50 4 - 12.5
9/16 18 TKS89623RCP H3 0.558 3.93 2.064 0.429 0.322 0.50 4 - 13.0
9/16 18 TKS89625RCP H5 0.558 3.93 2.064 0.429 0.322 0.50 4 - 13.0
5/8 11 TKS89643RCP H3 0.908 4.32 2.201 0.480 0.360 0.56 4 - 13.9
5/8 11 TKS89645RCP H5 0.908 4.32 2.201 0.480 0.360 0.56 4 - 13.9
5/8 18 TKS89663RCP H3 0.558 3.93 2.201 0.480 0.360 0.56 4 - 14.6
5/8 18 TKS89665RCP H5 0.558 3.93 2.201 0.480 0.360 0.56 4 - 14.6
3/4 10 TKS89703RCP H3 0.998 4.91 2.476 0.590 0.442 0.69 4 - 16.9
3/4 10 TKS89705RCP H5 0.998 4.91 2.476 0.590 0.442 0.69 4 - 16.9
3/4 16 TKS89723RCP H3 0.625 4.32 2.476 0.590 0.442 0.69 4 - 17.7
3/4 16 TKS89725RCP H5 0.625 4.32 2.476 0.590 0.442 0.69 4 - 17.7
