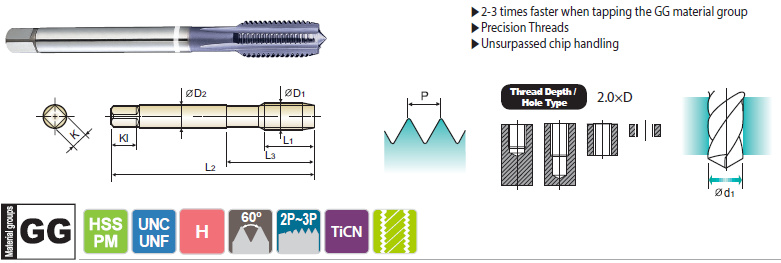

Straight Flute Tap for High Speed Tapping - TKS67 SERIES

Size T.P.I EDP No. Limit Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute
D1 TiCN L1 L2 L3 D2 K Kl Z
#4 40UNC TKS67162 H2 0.250 1.88 0.563 0.141 0.110 0.190 3
#4 48UNF TKS67181 H1 0.209 1.88 0.563 0.141 0.110 0.190 3
#4 48UNF TKS67182 H2 0.209 1.88 0.563 0.141 0.110 0.190 3
#5 40UNC TKS67202 H2 0.250 1.94 0.626 0.141 0.110 0.190 3
#5 44UNF TKS67221 H1 0.227 1.94 0.626 0.141 0.110 0.190 3
#5 44UNF TKS67222 H2 0.227 1.94 0.626 0.141 0.110 0.190 3
#6 32UNC TKS67242 H2 0.313 2.00 0.689 0.141 0.110 0.190 3
#6 32UNC TKS67243 H3 0.313 2.00 0.689 0.141 0.110 0.190 3
#6 40UNF TKS67262 H2 0.250 2.00 0.689 0.141 0.110 0.190 3
#8 32UNC TKS67282 H2 0.313 2.13 0.752 0.168 0.131 0.250 3
#8 32UNC TKS67283 H3 0.313 2.13 0.752 0.168 0.131 0.250 3
#8 36UNF TKS67302 H2 0.278 2.13 0.752 0.168 0.131 0.250 3
#10 24UNC TKS67323 H3 0.417 2.38 0.906 0.194 0.152 0.250 3
#10 32UNF TKS67342 H2 0.313 2.38 0.906 0.194 0.152 0.250 3
#10 32UNF TKS67343 H3 0.313 2.38 0.906 0.194 0.152 0.250 3
#12 24UNC TKS67363 H3 0.417 2.38 0.906 0.220 0.165 0.280 3
#12 28UNF TKS67383 H3 0.357 2.38 0.906 0.220 0.165 0.280 3
1/4 20UNC TKS67403 H3 0.500 2.50 1.000 0.255 0.191 0.310 3
1/4 20UNC TKS67405 H5 0.500 2.50 1.000 0.255 0.191 0.310 3
1/4 28UNF TKS67423 H3 0.357 2.50 1.000 0.255 0.191 0.310 3
1/4 28UNF TKS67424 H4 0.357 2.50 1.000 0.255 0.191 0.310 3
5/16 18UNC TKS67443 H3 0.556 2.72 1.126 0.318 0.238 0.380 3
5/16 18UNC TKS67445 H5 0.556 2.72 1.126 0.318 0.238 0.380 3
5/16 24UNF TKS67463 H3 0.417 2.72 1.126 0.318 0.238 0.380 3
5/16 24UNF TKS67464 H4 0.417 2.72 1.126 0.318 0.238 0.380 3
3/8 16UNC TKS67483 H3 0.625 2.94 1.252 0.381 0.286 0.440 4
3/8 16UNC TKS67485 H5 0.625 2.94 1.252 0.381 0.286 0.440 4
3/8 24UNF TKS67503 H3 0.417 2.94 1.252 0.381 0.286 0.440 4
3/8 24UNF TKS67504 H4 0.417 2.94 1.252 0.381 0.286 0.440 4
7/16 14UNC TKS67523 H3 0.714 3.16 1.850 0.323 0.242 0.410 4
7/16 14UNC TKS67525 H5 0.714 3.16 1.850 0.323 0.242 0.410 4
7/16 20UNF TKS67543 H3 0.500 3.16 1.850 0.323 0.242 0.410 4
7/16 20UNF TKS67545 H5 0.500 3.16 1.850 0.323 0.242 0.410 4
1/2 13UNC TKS67563 H3 0.769 3.38 2.067 0.367 0.275 0.440 4
1/2 13UNC TKS67565 H5 0.769 3.38 2.067 0.367 0.275 0.440 4
1/2 20UNF TKS67583 H3 0.500 3.38 2.067 0.367 0.275 0.440 4
1/2 20UNF TKS67585 H5 0.500 3.38 2.067 0.367 0.275 0.440 4
9/16 12UNC TKS67603 H3 0.833 3.59 2.067 0.429 0.322 0.500 4
9/16 12UNC TKS67605 H5 0.833 3.59 2.067 0.429 0.322 0.500 4
9/16 18UNF TKS67623 H3 0.556 3.59 2.067 0.429 0.322 0.500 4
9/16 18UNF TKS67625 H5 0.556 3.59 2.067 0.429 0.322 0.500 4
5/8 11UNC TKS67643 H3 0.909 3.81 2.205 0.480 0.360 0.560 4
5/8 11UNC TKS67645 H5 0.909 3.81 2.205 0.480 0.360 0.560 4
5/8 18UNF TKS67663 H3 0.556 3.81 2.205 0.480 0.360 0.560 4
5/8 18UNF TKS67665 H5 0.556 3.81 2.205 0.480 0.360 0.560 4
3/4 10UNC TKS67703 H3 1.000 4.25 2.480 0.590 0.442 0.690 4
3/4 10UNC TKS67705 H5 1.000 4.25 2.480 0.590 0.442 0.690 4
3/4 16UNF TKS67723 H3 0.625 4.25 2.480 0.590 0.442 0.690 4
3/4 16UNF TKS67725 H5 0.625 4.25 2.480 0.590 0.442 0.690 4
