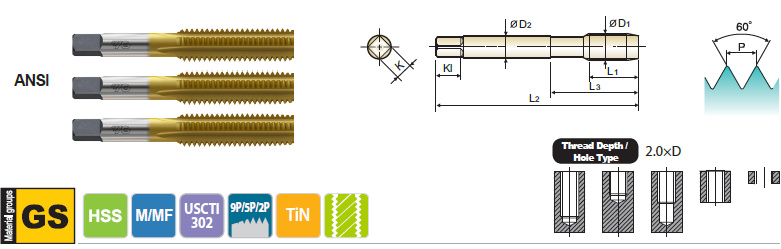

Hand Tap Taper, Plug & Bottoming Style - T8315 SERIES

Size Pitch EDP No. Limit Overall Length Thread Length Neck Length Shank Diameter Square Size Square Length No. of Flute
TiN
D1 P Taper Plug Bottoming L2 L1 L3 D2 K Kl
M2 0.4 - T8315137 T8315138 D3 1.752 0.394 - 0.141 0.110 0.190 3
M2.5 0.45 - T8315177 T8315178 D3 1.811 0.457 - 0.141 0.110 0.190 3
M3 0.5 - T8315207 T8315208 D3 1.937 0.622 - 0.141 0.110 0.190 3
M4 0.7 - T8315247 T8315248 D4 2.126 0.756 - 0.168 0.131 0.250 4
M4.5 0.75 - T8315267 T8315268 D4 2.374 0.909 - 0.194 0.152 0.250 4
M5 0.8 - T8315287 T8315288 D4 2.374 0.933 - 0.194 0.152 0.250 4
M6 1.0 - T8315317 T8315318 D5 2.500 0.980 - 0.255 0.191 0.310 4
M7 1.0 - T8315347 T8315348 D5 2.500 1.091 - 0.318 0.238 0.380 4
M8 1.25 - T8315367 T8315368 D5 2.720 1.126 - 0.318 0.238 0.380 4
M8 1.0 - T8315377 T8315378 D5 2.720 1.126 - 0.318 0.238 0.380 4
M10 1.5 - T8315427 T8315428 D6 2.937 1.240 - 0.381 0.286 0.440 4
M10 1.25 - T8315437 T8315438 D5 2.937 1.240 - 0.381 0.286 0.440 4
M12 1.75 - T8315507 T8315508 D6 3.374 1.657 - 0.367 0.275 0.440 4
M12 1.25 - T8315527 T8315528 D5 3.374 1.657 - 0.367 0.275 0.440 4
M14 2.0 - T8315547 T8315548 D7 3.594 1.657 - 0.429 0.322 0.500 4
M16 2.0 - T8315607 T8315608 D7 3.811 1.811 - 0.480 0.360 0.560 4
M16 1.5 - T8315617 T8315618 D6 3.811 1.811 - 0.480 0.360 0.560 4
M18 1.5 - T8315677 T8315678 D6 4.031 1.811 - 0.542 0.406 0.630 4
M20 2.5 - T8315707 T8315708 D7 4.469 2.000 - 0.652 0.489 0.690 4
M20 1.5 - T8315727 T8315728 D6 4.469 2.000 - 0.652 0.489 0.690 4
M24 3.0 - T8315787 T8315788 D8 4.906 2.220 - 0.760 0.570 0.750 4
