Tapping Home > Tapping > METRIC THREAD TAPS > HAND TAPS
Hand Tap Taper, Plug & Bottoming Style - T6315 SERIES

Size Pitch EDP No. Limit Overall Length Thread Length Neck Length Shank Diameter Square Size Square Length No. of Flute
Steam Oxide

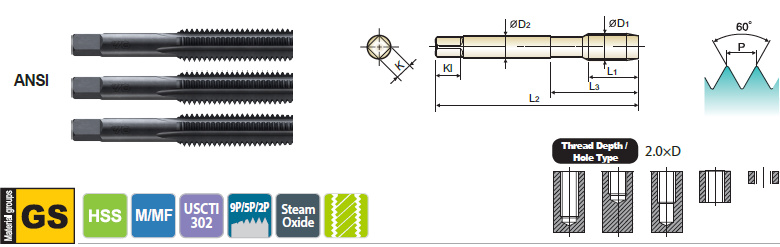

D1 P Taper Plug Bottoming L2 L1 L3 D2 K Kl
M2 0.4 - T6315137 T6315138 D3 1.752 0.394 - 0.141 0.110 0.190 3
M2.5 0.45 - T6315177 T6315178 D3 1.811 0.457 - 0.141 0.110 0.190 3
M3 0.5 T6315206 T6315207 T6315208 D3 1.937 0.622 - 0.141 0.110 0.190 3
M4 0.7 T6315246 T6315247 T6315248 D4 2.126 0.756 - 0.168 0.131 0.250 4
M4.5 0.75 - T6315267 T6315268 D4 2.374 0.909 - 0.194 0.152 0.250 4
M5 0.8 T6315286 T6315287 T6315288 D4 2.374 0.933 - 0.194 0.152 0.250 4
M6 1.0 T6315316 T6315317 T6315318 D5 2.500 0.980 - 0.255 0.191 0.310 4
M7 1.0 - T6315347 T6315348 D5 2.500 1.091 - 0.318 0.238 0.380 4
M8 1.25 T6315366 T6315367 T6315368 D5 2.720 1.126 - 0.318 0.238 0.380 4
M8 1.0 - T6315377 T6315378 D5 2.720 1.126 - 0.318 0.238 0.380 4
M10 1.5 T6315426 T6315427 T6315428 D6 2.937 1.240 - 0.381 0.286 0.440 4
M10 1.25 T6315436 T6315437 T6315438 D5 2.937 1.240 - 0.381 0.286 0.440 4
M12 1.75 T6315506 T6315507 T6315508 D6 3.374 1.657 - 0.367 0.275 0.440 4
M12 1.25 T6315526 T6315527 T6315528 D5 3.374 1.657 - 0.367 0.275 0.440 4
M14 2.0 T6315546 T6315547 T6315548 D7 3.594 1.657 - 0.429 0.322 0.500 4
M16 2.0 T6315606 T6315607 T6315608 D7 3.811 1.811 - 0.480 0.360 0.560 4
M16 1.5 T6315616 T6315617 T6315618 D6 3.811 1.811 - 0.480 0.360 0.560 4
M18 1.5 T6315676 T6315677 T6315678 D6 4.031 1.811 - 0.542 0.406 0.630 4
M20 2.5 T6315706 T6315707 T6315708 D7 4.469 2.000 - 0.652 0.489 0.690 4
M20 1.5 T6315726 T6315727 T6315728 D6 4.469 2.000 - 0.652 0.489 0.690 4
M24 3.0 T6315786 T6315787 T6315788 D8 4.906 2.220 - 0.760 0.570 0.750 4
M30 3.5 T6315946 T6315947 T6315948 D9 5.437 2.563 - 1.021 0.766 1.000 4
