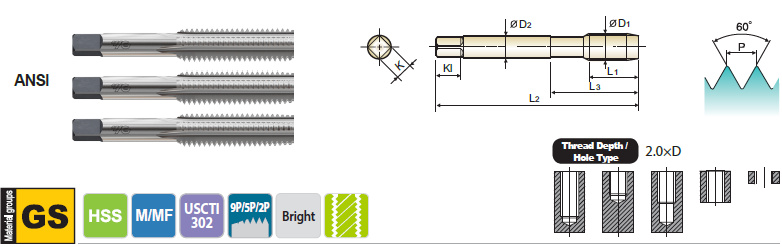

Hand Tap Taper, Plug & Bottoming Style - T7315 SERIES

Size Pitch EDP No. Limit Overall Length Thread Length Neck Length Shank Diameter Square Size Square Length No. of Flute
Bright
D1 P Taper Plug Bottoming L2 L1 L3 D2 K Kl
M1.6 0.35 - T7315097 - D3 1.634 0.315 - 0.141 0.110 0.190 3
M2 0.4 - T7315137 T7315138 D3 1.752 0.394 - 0.141 0.110 0.190 3
M2.5 0.45 - T7315177 T7315178 D3 1.811 0.457 - 0.141 0.110 0.190 3
M3 0.5 T7315206 T7315207 T7315208 D3 1.937 0.622 - 0.141 0.110 0.190 3
M3.5 0.6 - T7315227 T7315228 D4 2.000 0.705 - 0.141 0.110 0.190 3
M4 0.7 T7315246 T7315247 T7315248 D4 2.126 0.756 - 0.168 0.131 0.250 4
M4.5 0.75 - T7315267 T7315268 D4 2.374 0.909 - 0.194 0.152 0.250 4
M5 0.8 T7315286 T7315287 T7315288 D4 2.374 0.933 - 0.194 0.152 0.250 4
M6 1.0 T7315316 T7315317 T7315318 D5 2.500 0.980 - 0.255 0.191 0.310 4
M7 1.0 - T7315347 T7315348 D5 2.500 1.091 - 0.318 0.238 0.380 4
M8 1.25 T7315366 T7315367 T7315368 D5 2.720 1.126 - 0.318 0.238 0.380 4
M8 1.0 - T7315377 T7315378 D5 2.720 1.126 - 0.318 0.238 0.380 4
M10 1.5 T7315426 T7315427 T7315428 D6 2.937 1.240 - 0.381 0.286 0.440 4
M10 1.25 T7315436 T7315437 T7315438 D5 2.937 1.240 - 0.381 0.286 0.440 4
M10 1.0 - T7315447 T7315448 D5 2.937 1.240 - 0.381 0.286 0.440 4
M12 1.75 T7315506 T7315507 T7315508 D6 3.374 1.657 - 0.367 0.275 0.440 4
M12 1.5 - T7315517 T7315518 D6 3.374 1.657 - 0.367 0.275 0.440 4
M12 1.25 T7315526 T7315527 T7315528 D5 3.374 1.657 - 0.367 0.275 0.440 4
M14 2.0 T7315546 T7315547 T7315548 D7 3.594 1.657 - 0.429 0.322 0.500 4
M14 1.5 - T7315557 T7315558 D6 3.594 1.657 - 0.429 0.322 0.500 4
M14 1.25 - T7315567 T7315568 D5 3.594 1.657 - 0.429 0.322 0.500 4
M16 2.0 T7315606 T7315607 T7315608 D7 3.811 1.811 - 0.480 0.360 0.560 4
M16 1.5 T7315616 T7315617 T7315618 D6 3.811 1.811 - 0.480 0.360 0.560 4
M18 2.5 - T7315657 T7315658 D7 4.031 1.811 - 0.542 0.406 0.630 4
M18 1.5 T7315676 T7315677 T7315678 D6 4.031 1.811 - 0.542 0.406 0.630 4
M20 2.5 T7315706 T7315707 T7315708 D7 4.469 2.000 - 0.652 0.489 0.690 4
M20 1.5 T7315726 T7315727 T7315728 D6 4.470 2.000 - 0.652 0.489 0.690 4
M24 3.0 - T7315787 - D8 4.910 2.220 - 0.760 0.570 0.750 4
M30 3.5 T7315946 T7315947 T7315948 D9 5.440 2.560 - 1.021 0.766 1.000 4
M36 4.0 - T7315B37 - D9 6.060 3.000 - 1.233 0.925 1.130 4
