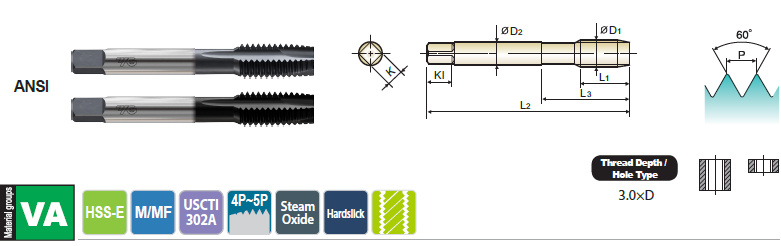

Spiral Point Tap Plug Style for Stainless Steels - O9 / IA SERIES
View TAP SELECTOR / CUTTING DATA

Size Pitch EDP No. Limit Overall Length Thread Length Neck Length Shank Diameter Square Size Square Length No. of Flute
D1 P Steam Oxide Hardslick L2 L1 L3 D2 K Kl
M3 0.5 O9203 IA203 D3 1.937 0.197 0.646 0.141 0.110 0.190 3
M3.5 0.6 O9224 IA224 D4 2.000 0.276 0.709 0.141 0.110 0.190 3
M4 0.7 O9244 IA244 D4 2.126 0.276 0.768 0.168 0.131 0.250 3
M5 0.8 O9284 IA284 D4 2.374 0.354 0.933 0.194 0.152 0.250 3
M6 1.0 O9315 IA315 D5 2.500 0.433 1.000 0.255 0.191 0.310 3
M7 1.0 O9345 IA345 D5 2.720 0.433 1.126 0.318 0.238 0.380 3
M8 1.25 O9365 IA365 D5 2.720 0.472 1.126 0.318 0.238 0.380 3
M8 1.0 O9375 IA375 D5 2.720 0.433 1.126 0.318 0.238 0.380 3
M10 1.5 O9426 IA426 D6 2.937 0.512 1.252 0.381 0.286 0.440 3
M10 1.25 O9435 IA435 D5 2.937 0.472 1.252 0.381 0.286 0.440 3
M12 1.75 O9506 IA506 D5 3.374 0.433 1.252 0.381 0.286 0.440 3
M12 1.25 O9525 IA525 D6 3.374 0.591 2.067 0.367 0.275 0.440 3
M14 2.0 O9547 IA547 D5 3.594 0.551 2.067 0.367 0.275 0.440 3
M14 1.5 O9556 IA556 D7 3.594 0.709 2.067 0.429 0.322 0.500 3
M16 2.0 O9607 IA607 D6 3.811 0.551 2.067 0.429 0.322 0.500 3
M16 1.5 O9616 IA616 D7 3.811 0.709 2.205 0.480 0.360 0.560 3
M18 2.5 O9657 IA657 D6 4.031 0.551 2.205 0.480 0.360 0.560 3
M18 1.5 O9676 IA676 D6 4.031 0.551 2.205 0.542 0.406 0.630 4
