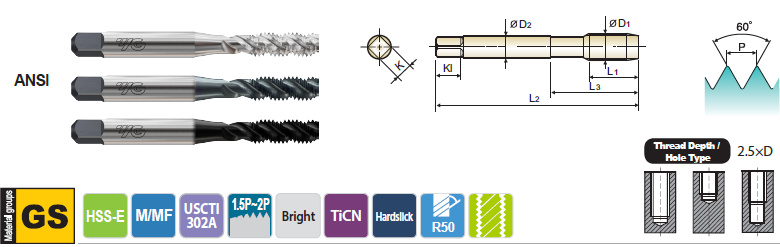

Spiral Flute Tap Bottoming Style for General Purpose - G4 / G5 / G6 SERIES
View TAP SELECTOR / CUTTING DATA

Size Pitch EDP No. Limit Overall Length Thread Length Neck Length Shank Diameter Square Size Square Length No. of Flute
D1 P Bright TiCN Hardslick L2 L1 L3 D2 K KI
M3 0.5 G4203 G5203 G6203 D3 1.937 0.311 0.646 0.141 0.110 0.190 2
M3.5 0.6 G4224 G5224 G6224 D4 2.000 0.374 0.709 0.141 0.110 0.190 2
M4 0.7 G4244 G5244 G6244 D4 2.126 0.374 0.768 0.168 0.131 0.250 3
M5 0.8 G4284 G5284 G6284 D4 2.374 0.500 0.933 0.194 0.152 0.250 3
M6 1.0 G4315 G5315 G6315 D5 2.500 0.626 1.000 0.255 0.191 0.310 3
M7 1.0 G4345 G5345 G6345 D5 2.720 0.689 1.126 0.318 0.238 0.380 3
M8 1.25 G4365 G5365 G6365 D5 2.720 0.689 1.126 0.318 0.238 0.380 3
M8 1.0 G4375 G5375 G6375 D5 2.720 0.689 1.126 0.318 0.238 0.380 3
M10 1.5 G4426 G5426 G6426 D6 2.937 0.748 1.252 0.381 0.286 0.440 3
M10 1.25 G4435 G5435 G6435 D5 2.937 0.748 1.252 0.381 0.286 0.440 3
M12 1.75 G4506 G5506 G6506 D6 3.374 0.937 1.594 0.367 0.275 0.440 3
M12 1.25 G4525 G5525 G6525 D5 3.374 0.937 1.594 0.367 0.275 0.440 3
