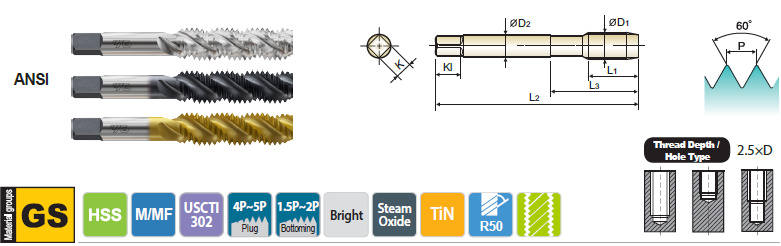

Spiral Flute Tap for General Purpose - T7A85 / T6A85 / T8A85 SERIES

Size Pitch EDP No. Limit Overall Length Thread Length Neck Length Shank Diameter Square Size Square Length No. of Flute
D1 P Bottom
Bright Steam Oxide TiN L2 L1 L3 D2 K KI
M3 0.5 T7A85203 T6A85203 T8A85203 D3 1.937 0.602 0.622 0.141 0.110 0.190 2
M4 0.7 T7A85244 T6A85244 T8A85244 D4 2.067 0.732 0.752 0.168 0.131 0.250 3
M5 0.8 T7A85284 T6A85284 T8A85284 D4 2.303 0.874 - 0.194 0.152 0.250 3
M6 1.0 T7A85315 T6A85315 T8A85315 D5 2.500 1.000 - 0.255 0.191 0.310 3
M8 1.25 T7A85365 T6A85365 T8A85365 D5 2.720 1.126 - 0.318 0.238 0.380 3
M10 1.5 T7A85426 T6A85426 T8A85426 D6 2.937 1.252 - 0.381 0.286 0.440 3
M12 1.75 T7A85506 T6A85506 T8A85506 D6 1.657 1.657 - 0.367 0.275 0.440 3
