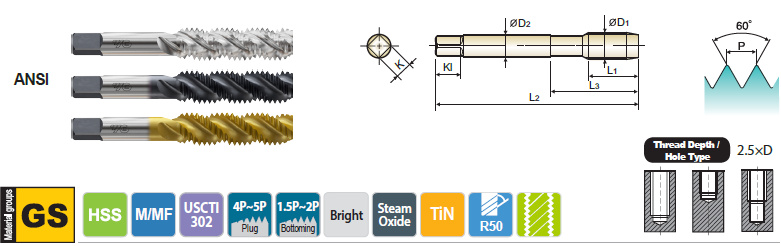

Spiral Flute Tap for General Purpose - T7A86 / T6A86 / T8A86 SERIES

Size Pitch EDP No. Limit Overall Length Thread Length Neck Length Shank Diameter Square Size Square Length No. of Flute
D1 P Plug
Bright Steam Oxide TiN L2 L1 L3 D2 K KI
M3 0.5 T7A86203 T6A86203 T8A86203 D3 1.937 0.602 0.622 0.141 0.110 0.190 2
M4 0.7 T7A86244 T6A86244 T8A86244 D4 2.067 0.732 0.752 0.168 0.131 0.250 3
M5 0.8 T7A86284 T6A86284 T8A86284 D4 2.303 0.874 - 0.194 0.152 0.250 3
M6 1.0 T7A86315 T6A86315 T8A86315 D5 2.500 1.000 - 0.255 0.191 0.310 3
M8 1.25 T7A86365 T6A86365 T8A86365 D5 2.720 1.126 - 0.318 0.238 0.380 3
M10 1.5 T7A86426 T6A86426 T8A86426 D6 2.937 1.252 - 0.381 0.286 0.440 3
M12 1.75 T7A86506 T6A86506 T8A86506 D6 1.657 1.657 - 0.367 0.275 0.440 3
