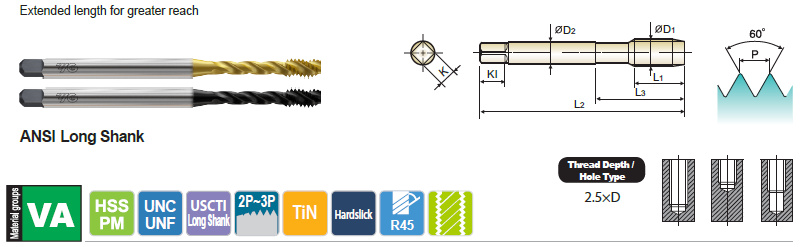

6” Extended Length Spiral Flute Tap Modified Bottoming Style for Stainless Steels - G8 / H0 SERIES

Size T.P.I EDP No. Limit Overall Length Thread Length Neck Length Shank Diameter Square Size Square Length No. of Flute
D1 TiN 6 OAL Hardslick 6 OAL L2 L1 L3 D2 K Kl
#6 32UNC G8243 H0243 H3 6.000 0.276 1.024 0.141 0.110 0.190 3
#8 32UNC G8283 H0283 H3 6.000 0.276 1.122 0.168 0.131 0.250 3
#10 24UNC G8323 H0323 H3 6.000 0.354 1.319 0.194 0.152 0.250 3
#10 32UNF G8343 H0343 H3 6.000 0.276 1.319 0.194 0.152 0.250 3
1/4 20UNC G8403 H0403 H3 6.000 0.433 1.496 0.255 0.191 0.310 3
1/4 28UNF G8423 H0423 H3 6.000 0.433 1.496 0.255 0.191 0.310 3
5/16 18UNC G8443 H0443 H3 6.000 0.472 1.693 0.318 0.238 0.380 3
5/16 24UNF G8463 H0463 H3 6.000 0.394 1.693 0.318 0.238 0.380 3
3/8 16UNC G8483 H0483 H3 6.000 0.551 1.870 0.381 0.286 0.440 3
3/8 24UNF G8503 H0503 H3 6.000 0.394 1.870 0.381 0.286 0.440 3
7/16 14UNC G8523 H0523 H3 6.000 0.591 2.165 0.323 0.242 0.410 3
7/16 20UNF G8543 H0543 H3 6.000 0.472 2.165 0.323 0.242 0.410 3
1/2 13UNC G8563 H0563 H3 6.000 0.630 2.480 0.367 0.275 0.440 3
1/2 20UNF G8583 H0583 H3 6.000 0.472 2.480 0.367 0.275 0.440 3
5/8 11UNC G8643 H0643 H3 6.000 0.748 2.717 0.480 0.360 0.560 4
