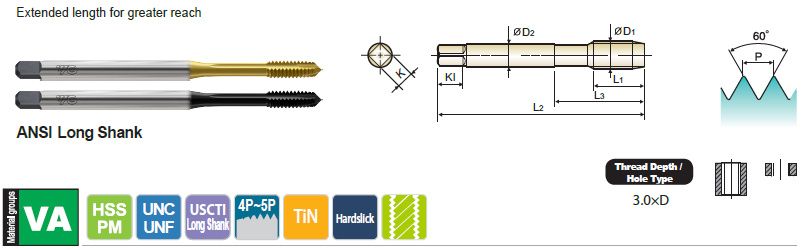

6” Extended Length Spiral Point Tap Plug Style for Stainless Steels - M1 / M3 SERIES

Size T.P.I EDP No. Limit Overall Length Thread Length Neck Length Shank Diameter Square Size Square Length No. of Flute
D1 TiN 6 OAL Hardslick 6 OAL L2 L1 L3 D2 K Kl
#6 32UNC M1243 M3243 H3 6.000 0.413 1.024 0.141 0.110 0.190 2
#8 32UNC M1283 M3283 H3 6.000 0.453 1.122 0.168 0.131 0.250 3
#10 24UNC M1323 M3323 H3 6.000 0.531 1.319 0.194 0.152 0.250 3
#10 32UNF M1343 M3343 H3 6.000 0.531 1.319 0.194 0.152 0.250 3
1/4 20UNC M1403 M3403 H3 6.000 0.591 1.496 0.255 0.191 0.310 3
1/4 28UNF M1423 M3423 H3 6.000 0.591 1.496 0.255 0.191 0.310 3
5/16 18UNC M1443 M3443 H3 6.000 0.669 1.693 0.318 0.238 0.380 3
5/16 24UNF M1463 M3463 H3 6.000 0.669 1.693 0.318 0.238 0.380 3
3/8 16UNC M1483 M3483 H3 6.000 0.748 1.870 0.381 0.286 0.440 3
3/8 24UNF M1503 M3503 H3 6.000 0.748 1.870 0.381 0.286 0.440 3
7/16 14UNC M1523 M3523 H3 6.000 0.866 2.165 0.323 0.242 0.410 3
7/16 20UNF M1543 M3543 H3 6.000 0.866 2.165 0.323 0.242 0.410 3
1/2 13UNC M1563 M3563 H3 6.000 0.984 2.480 0.367 0.275 0.440 3
1/2 20UNF M1583 M3583 H3 6.000 0.984 2.480 0.367 0.275 0.440 3
9/16 12UNC M1603 M3603 H3 6.000 0.984 2.480 0.429 0.322 0.500 3
9/16 18UNF M1623 M3623 H3 6.000 0.984 2.480 0.429 0.322 0.500 3
5/8 11UNC M1643 M3643 H3 6.000 1.083 2.717 0.480 0.360 0.560 3
