Tapping Home > Tapping > METRIC THREAD TAPS > YG TAP INOX

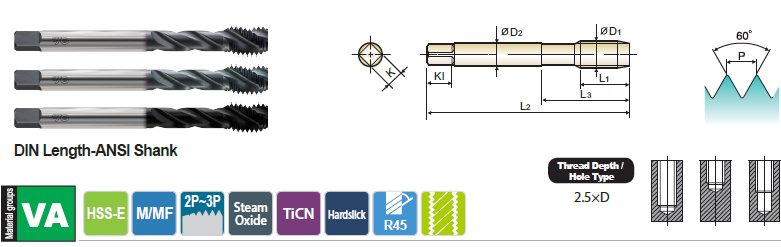

Spiral Flute Tap DIN/ANSI Modified Bottoming Style for Stainless Steels - E6 / E8 / E9 / TG915 / T2H15 SERIES

Size Pitch EDP No. Limit Overall Length Thread Length Neck Length Shank Diameter Square Size Square Length No. of Flute
D1 P Steam Oxide TiCN Hardslick L2 L1 L3 D2 K Kl
M3 0.5 E6203 E8203 E9203 D3 2.205 0.197 0.646 0.141 0.110 0.190 3
M3.5 0.6 E6224 E8224 E9224 D4 2.205 0.276 0.709 0.141 0.110 0.190 3
M4 0.7 E6244 E8244 E9244 D4 2.480 0.276 0.768 0.168 0.131 0.250 3
M5 0.8 E6284 E8284 E9284 D4 2.756 0.354 0.933 0.194 0.152 0.250 3
M6 1.0 E6315 E8315 E9315 D5 3.150 0.433 1.000 0.255 0.191 0.310 3
M7 1.0 E6345 E8345 E9345 D5 3.150 0.433 1.126 0.318 0.238 0.380 3
M8 1.25 E6365 E8365 E9365 D5 3.543 0.472 1.126 0.318 0.238 0.380 3
M8 1.0 E6375 E8375 E9375 D5 3.543 0.433 1.126 0.318 0.238 0.380 3
M10 1.5 E6426 E8426 E9426 D6 3.937 0.512 1.252 0.381 0.286 0.440 3
M10 1.25 E6435 E8435 E9435 D5 3.937 0.472 1.252 0.381 0.286 0.440 3
M12 1.75 E6506 E8506 E9506 D6 4.331 0.591 2.067 0.367 0.275 0.440 3
M12 1.25 E6525 E8525 E9525 D5 3.937 0.551 2.067 0.367 0.275 0.440 3
M14 2.0 E6547 E8547 E9547 D7 4.331 0.709 2.067 0.429 0.322 0.500 3
M14 1.5 E6556 E8556 E9556 D6 3.937 0.551 2.067 0.429 0.322 0.500 3
M16 2.0 E6607 E8607 E9607 D7 4.331 0.709 2.205 0.480 0.360 0.560 3
M16 1.5 E6616 E8616 E9616 D6 3.937 0.551 2.205 0.480 0.360 0.560 3
M18 2.5 E6657 E8657 E9657 D7 4.921 0.787 2.205 0.542 0.406 0.630 4
M18 1.5 E6676 E8676 E9676 D6 4.331 0.551 2.205 0.542 0.406 0.630 4
M20 1.5 TG915726 T2H15726 D6
M20 2.5 TG915707 T2H15707 D7
M22 1.5 TG915766 T2H15766 D6
M22 2.5 TG915747 T2H15747 D7
M24 1.5 TG915806 T2H15806 D6
M24 3.0 TG915788 T2H15788 D8
