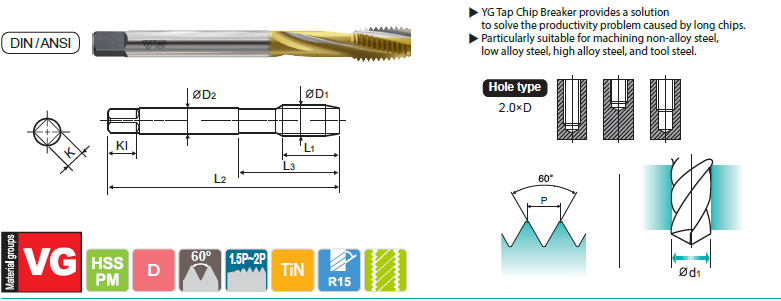

SPIRAL FLUTE TAPS with CHIP BREAKER - TTF19

SIZE Pitch EDP No. Limits Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute Tapping Drill Diameter (Ød1)
ØD1 P L1 L2 L3 ØD2 K KI Z Inch Metric
M4 0.7 TTF19244R D4 0.276 2.48 0.823 0.168 0.191 0.310 3 - 3.4
M5 0.8 TTF19284R D4 0.315 2.76 0.988 0.194 0.191 0.310 3 - 4.3
M6 1.0 TTF19315R D5 0.394 3.15 1.177 0.255 0.191 0.310 3 - 5.1
M8 1.25 TTF19365R D5 0.512 3.54 1.378 0.318 0.238 0.380 3 - 6.1
M9 1.25 TTF19395R D5 0.512 3.54 1.378 0.381 0.286 0.440 3 - 7.9
M10 1.5 TTF19426R D6 0.591 3.94 1.535 0.381 0.286 0.440 3 - 8.7
M10 1.25 TTF19435R D5 0.512 3.94 1.535 0.381 0.286 0.440 3 - 8.9
M10 1.0 TTF19445R D5 0.394 3.54 1.378 0.381 0.286 0.440 3 - 9.1
M12 1.75 TTF19506R D6 0.709 4.33 1.933 0.367 0.275 0.440 3 - 10.5
M12 1.5 TTF19516R D6 0.591 3.94 1.933 0.367 0.275 0.440 3 - 10.7
M12 1.25 TTF19525R D5 0.512 3.94 1.933 0.367 0.275 0.440 3 - 10.9
M14 2.0 TTF19547R D7 0.787 4.33 1.972 0.429 0.322 0.500 3 - 12.3
M14 1.5 TTF19556R D6 0.591 3.94 1.972 0.429 0.322 0.500 3 - 12.7
M14 1.25 TTF19566R D6 0.512 3.94 1.972 0.429 0.322 0.500 3 - 12.9
M16 2.0 TTF19607R D7 0.787 4.33 2.126 0.480 0.360 0.560 3 - 14.3
M16 1.5 TTF19616R D6 0.591 3.94 2.126 0.480 0.360 0.560 3 - 14.7
M18 2.5 TTF19657R D7 0.984 4.92 2.165 0.542 0.406 0.610 4 - 15.8
M18 1.5 TTF19676R D6 0.591 4.33 2.165 0.542 0.406 0.610 4 - 16.7
