Modified Bottoming High Performance Form Taps - TRR10 series

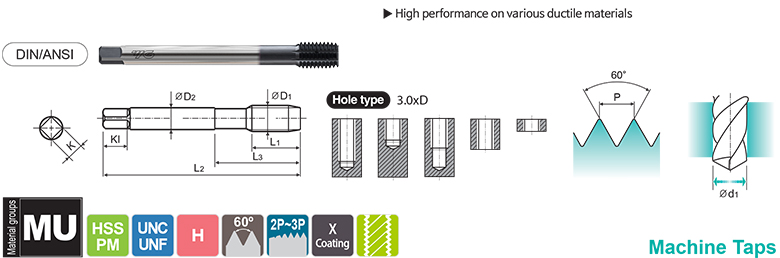

Size	TPI	EDP No.	Limits	Thread Length	Overall Length	Neck Length	Shank Diameter	Square Size	Square Length	No. of Flute	Tapping Drill Diameter Ød1
ØD1		EDP No.	Limits	L1	L2	L3	ØD2	K	KI	Z	Inch	Metric
#0	80	TRR10023GS	H3	0.315	1.57	0.362	0.141	0.11	0.19	4	-	1.40
#1	64	TRR10043GS	H3	0.315	1.57	0.37	0.141	0.11	0.19	4	-	1.70
#2	56	TRR10082GS	H2	0.386	1.77	0.425	0.141	0.11	0.19	4	-	2.00
#2	56	TRR10083GS	H3	0.386	1.77	0.425	0.141	0.11	0.19	4	-	2.00
#2	64	TRR10102GS	H2	0.386	1.77	0.425	0.141	0.11	0.19	4	-	2.00
#2	64	TRR10103GS	H3	0.386	1.77	0.425	0.141	0.11	0.19	4	-	2.00
#3	48	TRR10122GS	H2	0.386	1.97	0.453	0.141	0.11	0.19	4	-	2.30
#3	48	TRR10123GS	H3	0.386	1.97	0.453	0.141	0.11	0.19	4	-	2.30
#3	56	TRR10142GS	H2	0.386	1.97	0.453	0.141	0.11	0.19	4	-	2.30
#3	56	TRR10143GS	H3	0.386	1.97	0.453	0.141	0.11	0.19	4	-	2.30
#4	40	TRR10163GS	H3	0.299	2.21	0.709	0.141	0.11	0.19	4	#38	-
#4	40	TRR10165GS	H5	0.299	2.21	0.709	0.141	0.11	0.19	4	#38	-
#4	48	TRR10183GS	H3	0.299	2.21	0.709	0.141	0.11	0.19	4	-	2.60
#4	48	TRR10185GS	H5	0.299	2.21	0.709	0.141	0.11	0.19	4	-	2.60
#5	40	TRR10203GS	H3	0.299	2.21	0.709	0.141	0.11	0.19	4	-	2.90
#5	40	TRR10205GS	H5	0.299	2.21	0.709	0.141	0.11	0.19	4	-	2.90
#5	44	TRR10223GS	H3	0.299	2.21	0.709	0.141	0.11	0.19	4	-	2.90
#5	44	TRR10225GS	H5	0.299	2.21	0.709	0.141	0.11	0.19	4	-	2.90
#6	32	TRR10243GS	H3	0.374	2.21	0.787	0.141	0.11	0.19	4	1/8	-
#6	32	TRR10245GS	H5	0.374	2.21	0.787	0.141	0.11	0.19	4	1/8	-
#6	40	TRR10263GS	H3	0.374	2.21	0.787	0.141	0.11	0.19	4	-	3.20
#6	40	TRR10265GS	H5	0.374	2.21	0.787	0.141	0.11	0.19	4	-	3.20
#8	32	TRR10283GS	H3	0.374	2.48	0.827	0.168	0.131	0.25	4	-	3.80
#8	32	TRR10285GS	H5	0.374	2.48	0.827	0.168	0.131	0.25	4	-	3.80
#8	36	TRR10303GS	H3	0.374	2.48	0.827	0.168	0.131	0.25	4	#24	-
#8	36	TRR10305GS	H5	0.374	2.48	0.827	0.168	0.131	0.25	4	#24	-
#10	24	TRR10324GS	H4	0.5	2.75	0.984	0.194	0.152	0.25	5	-	4.40
#10	24	TRR10326GS	H6	0.5	2.75	0.984	0.194	0.152	0.25	5	-	4.40
#10	32	TRR10344GS	H4	0.5	2.75	0.984	0.194	0.152	0.25	5	-	4.50
#10	32	TRR10346GS	H6	0.5	2.75	0.984	0.194	0.152	0.25	5	-	4.50
#12	24	TRR10365GS	H5	0.5	3.15	1.142	0.22	0.165	0.28	5	-	5.00
#12	24	TRR10367GS	H7	0.5	3.15	1.142	0.22	0.165	0.28	5	-	5.00
#12	28	TRR10385GS	H5	0.5	3.15	1.142	0.22	0.165	0.28	5	-	5.10
#12	28	TRR10387GS	H7	0.5	3.15	1.142	0.22	0.165	0.28	5	-	5.10
1/4	20	TRR10404GS	H4	0.5	3.15	1.181	0.255	0.191	0.31	5	-	5.80
1/4	20	TRR10406GS	H6	0.5	3.15	1.181	0.255	0.191	0.31	5	-	5.80
1/4	28	TRR10424GS	H4	0.5	3.15	1.181	0.255	0.191	0.31	5	15/64	-
1/4	28	TRR10426GS	H6	0.5	3.15	1.181	0.255	0.191	0.31	5	15/64	-
5/16	18	TRR10445GS	H5	0.555	3.54	1.378	0.318	0.238	0.38	5	-	7.30
5/16	18	TRR10447GS	H7	0.555	3.54	1.378	0.318	0.238	0.38	5	-	7.30
5/16	24	TRR10465GS	H5	0.555	3.54	1.378	0.318	0.238	0.38	5	-	7.50
5/16	24	TRR10467GS	H7	0.555	3.54	1.378	0.318	0.238	0.38	5	-	7.50
3/8	16	TRR10485GS	H5	0.626	3.94	1.575	0.381	0.286	0.44	8	-	8.80
3/8	16	TRR10487GS	H7	0.626	3.94	1.575	0.381	0.286	0.44	8	-	8.80
3/8	24	TRR10505GS	H5	0.626	3.94	1.575	0.381	0.286	0.44	8	-	9.00
3/8	24	TRR10507GS	H7	0.626	3.94	1.575	0.381	0.286	0.44	8	-	9.00
7/16	14	TRR10525GS	H5	0.713	3.94	1.693	0.323	0.242	0.41	8	-	10.30
7/16	14	TRR10528GS	H8	0.713	3.94	1.693	0.323	0.242	0.41	8	-	10.30
7/16	20	TRR10545GS	H5	0.713	3.94	1.693	0.323	0.242	0.41	8	-	10.60
7/16	20	TRR10548GS	H8	0.713	3.94	1.693	0.323	0.242	0.41	8	-	10.60
1/2	13	TRR10565GS	H5	0.768	4.33	1.929	0.367	0.275	0.44	8	-	11.80
1/2	13	TRR10568GS	H8	0.768	4.33	1.929	0.367	0.275	0.44	8	-	11.80
1/2	20	TRR10585GS	H5	0.768	3.94	1.929	0.367	0.275	0.44	8	-	12.10
1/2	20	TRR10588GS	H8	0.768	3.94	1.929	0.367	0.275	0.44	8	-	12.10
9/16	12	TRR10600GS	H10	0.835	4.33	1.969	0.429	0.322	0.5	8	-	13.40
9/16	12	TRR10607GS	H7	0.835	4.33	1.969	0.429	0.322	0.5	8	-	13.40
9/16	18	TRR10620GS	H10	0.835	3.94	1.969	0.429	0.322	0.5	8	-	13.70
9/16	18	TRR10627GS	H7	0.835	3.94	1.969	0.429	0.322	0.5	8	-	13.70
5/8	11	TRR10640GS	H10	0.909	4.33	2.126	0.48	0.36	0.56	8	-	14.90
5/8	11	TRR10647GS	H7	0.909	4.33	2.126	0.48	0.36	0.56	8	-	14.90
5/8	18	TRR10660GS	H10	0.909	3.94	2.126	0.48	0.36	0.56	8	-	15.30
5/8	18	TRR10667GS	H7	0.909	3.94	2.126	0.48	0.36	0.56	8	-	15.30
3/4	10	TRR10700GS	H10	0.799	4.92	2.441	0.59	0.442	0.69	8	-	17.90
3/4	10	TRR10707GS	H7	0.799	4.92	2.441	0.59	0.442	0.69	8	-	17.90
3/4	16	TRR10720GS	H10	0.626	4.33	2.441	0.59	0.442	0.69	8	-	18.40
3/4	16	TRR10727GS	H7	0.626	4.33	2.441	0.59	0.442	0.69	8	-	18.40
7/8	9	TRR10748GS	H8	0.89	5.51	2.638	0.697	0.523	0.75	8	-	21.00
7/8	9	TRR1074AGS	H11	0.89	5.51	2.638	0.697	0.523	0.75	8	-	21.00
7/8	14	TRR10768GS	H8	0.713	4.92	2.638	0.697	0.523	0.75	8	-	21.40
7/8	14	TRR1076AGS	H11	0.713	4.92	2.638	0.697	0.523	0.75	8	-	21.40
1"	8	TRR10788GS	H8	1	6.3	2.992	0.8	0.6	0.81	8	-	24.00
1"	8	TRR1078AGS	H11	1	6.3	2.992	0.8	0.6	0.81	8	-	24.00
1"	12	TRR10808GS	H8	0.835	5.51	2.992	0.8	0.6	0.81	8	-	24.50
1"	12	TRR1080AGS	H11	0.835	5.51	2.992	0.8	0.6	0.81	8	-	24.50
