Tapping Home > Tapping > METRIC THREAD TAPS > SYNCHRO TAPS

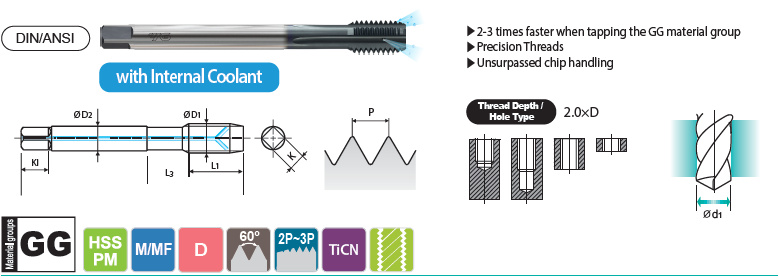

Straight Flute Tap for High Speed Tapping - TKS84 SERIES

Size Pitch EDP No. Limit Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute Tapping Drill Diameter (Ød1)
D1 P TiCN L1 L2 L3 D2 K Kl Z Inch Metric
M6 1.0 TKS84315RCP D5 0.393 3.14 1.179 0.255 0.191 0.31 3 - 5.1
M8 1.25 TKS84365RCP D5 0.511 3.54 1.376 0.318 0.238 0.38 3 - 6.9
M8 1.0 TKS84375RCP D5 0.393 3.54 1.376 0.318 0.238 0.38 3 - 7.1
M10 1.5 TKS84426RCP D6 0.590 3.93 1.533 0.381 0.286 0.44 4 - 8.7
M10 1.25 TKS84435RCP D5 0.511 3.93 1.533 0.381 0.286 0.44 4 - 8.9
M12 1.75 TKS84506RCP D6 0.708 4.32 2.064 0.367 0.275 0.44 4 - 10.5
M12 1.25 TKS84525RCP D5 0.511 3.93 2.064 0.367 0.275 0.44 4 - 10.9
M14 2.0 TKS84547RCP D7 0.786 4.32 2.064 0.429 0.322 0.50 4 - 12.3
M14 1.5 TKS84556RCP D6 0.590 3.93 2.064 0.429 0.322 0.50 4 - 12.7
M16 2.0 TKS84607RCP D7 0.786 4.32 2.201 0.480 0.360 0.56 4 - 14.3
M16 1.5 TKS84616RCP D6 0.590 3.93 2.201 0.480 0.360 0.56 4 - 14.7
M18 2.5 TKS84657RCP D7 0.983 4.91 2.476 0.542 0.406 0.63 4 - 15.8
M18 1.5 TKS84676RCP D6 0.590 4.32 2.476 0.542 0.406 0.63 4 - 16.7
M20 2.5 TKS84707RCP D7 0.983 5.50 2.752 0.652 0.489 0.69 4 - 17.8
M20 1.5 TKS84726RCP D6 0.590 4.91 2.752 0.652 0.489 0.69 4 - 18.7
