Drilling	Home >

CARBIDE, DREAM DRILLS - ALU with COOLANT HOLES (5XD) - (DGE433)

View TECHNICAL INFORMATION AND COOLANT RECOMMENDATIONS

DLC-COATED SOLID CARBIDE DREAM DRILLS ALU with Coolant Holes (5XD) LONG DGE433 series

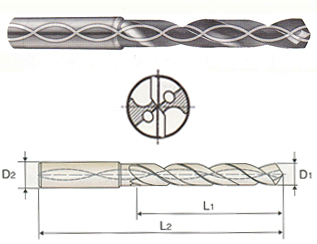

EDP	Metric Diameter	Fractional Diameter	Fractional Decimal Diameter	Shank Diameter	Flute Length	Overall Length
DLC	D1	D1	D1	D2	L1	L2
DGE433030	3.0		0.1181	6	28	66
DGE433031	3.1		0.1220	6	28	66
DGE433008F	3.175	1/8	0.1250	6	28	66
DGE433032	3.2		0.1260	6	28	66
DGE433033	3.3		0.1299	6	28	66
DGE433034	3.4		0.1339	6	28	66
DGE433035	3.5		0.1378	6	28	66
DGE433009F	3.572	9/64	0.1406	6	28	66
DGE433036	3.6		0.1417	6	28	66
DGE433037	3.7		0.1457	6	28	66
DGE433038	3.8		0.1496	6	36	74
DGE433039	3.9		0.1535	6	36	74
DGE433010F	3.969	5/32	0.1563	6	36	74
DGE433040	4.0		0.1575	6	36	74
DGE433041	4.1		0.1614	6	36	74
DGE433042	4.2		0.1654	6	36	74
DGE433043	4.3		0.1693	6	36	74
DGE433011F	4.366	11/64	0.1719	6	36	74
DGE433044	4.4		0.1732	6	36	74
DGE433045	4.5		0.1772	6	36	74
DGE433046	4.6		0.1811	6	36	74
DGE433047	4.7		0.1850	6	36	74
DGE433012F	4.763	3/16	0.1875	6	36	74
DGE433048	4.8		0.1890	6	44	82
DGE433049	4.9		0.1929	6	44	82
DGE433050	5.0		0.1969	6	44	82
DGE433051	5.1		0.2008	6	44	82
DGE433013F	5.159	13/64	0.2031	6	44	82
DGE433052	5.2		0.2047	6	44	82
DGE433053	5.3		0.2087	6	44	82
DGE433054	5.4		0.2126	6	44	82
DGE433055	5.5		0.2165	6	44	82
DGE433014F	5.556	7/32	0.2188	6	44	82
DGE433056	5.6		0.2205	6	44	82
DGE433057	5.7		0.2244	6	44	82
DGE433058	5.8		0.2283	6	44	82
DGE433059	5.9		0.2323	6	44	82
DGE433015F	5.953	15/64	0.2344	6	44	82
DGE433060	6.0		0.2362	6	44	82
DGE433061	6.1		0.2402	8	53	91
DGE433062	6.2		0.2441	8	53	91
DGE433063	6.3		0.2480	8	53	91
DGE433016F	6.350	1/4	0.2500	8	53	91
DGE433064	6.4		0.2520	8	53	91
DGE433065	6.5		0.2559	8	53	91
DGE433006L	6.528	F	0.2570	8	53	9
DGE433066	6.6		0.2598	8	53	91
DGE433067	6.7		0.2638	8	53	91
DGE433017F	6.747	17/64	0.2656	8	53	91
DGE433068	6.8		0.2677	8	53	91
DGE433069	6.9		0.2717	8	53	91
DGE433009L	6.909	I	0.2720	8	53	91
DGE433070	7.0		0.2756	8	53	91
DGE433071	7.1		0.2795	8	53	91
DGE433018F	7.144	9/32	0.2812	8	53	91
DGE433072	7.2		0.2835	8	53	91
DGE433073	7.3		0.2874	8	53	91
DGE433074	7.4		0.2913	8	53	91
DGE433075	7.5		0.2953	8	53	91
DGE433019F	7.541	19/64	0.2969	8	53	91
DGE433076	7.6		0.2992	8	53	91
DGE433077	7.7		0.3031	8	53	91
DGE433078	7.8		0.3071	8	53	91
DGE433079	7.9		0.3110	8	53	91
DGE433020F	7.938	5/16	0.3125	8	53	91
DGE433080	8.0		0.3150	8	53	91
DGE433081	8.1		0.3189	10	61	103
DGE433082	8.2		0.3228	10	61	103
DGE433083	8.3		0.3268	10	61	103
DGE433021F	8.334	21/64	0.3281	10	61	103
DGE433084	8.4		0.3307	10	61	103
DGE433017L	8.433	Q	0.3320	10	61	103
DGE433085	8.5		0.3346	10	61	103
DGE433086	8.6		0.3386	10	61	103
DGE433087	8.7		0.3425	10	61	103
DGE433022F	8.731	11/32	0.3438	10	61	103
DGE433088	8.8		0.3465	10	61	103
DGE433089	8.9		0.3504	10	61	103
DGE433090	9.0		0.3543	10	61	103
DGE433091	9.1		0.3583	10	61	103
DGE433023F	9.128	23/64	0.3594	10	61	103
DGE433092	9.2		0.3622	10	61	103
DGE433093	9.3		0.3661	10	61	103
DGE433021L	9.347	U	0.3680	10	61	103
DGE433094	9.4		0.3701	10	61	103
DGE433095	9.5		0.3740	10	61	103
DGE433024F	9.525	3/8	0.3750	10	61	103
DGE433096	9.6		0.3780	10	61	103
DGE433097	9.7		0.3819	10	61	103
DGE433098	9.8		0.3858	10	61	103
DGE433099	9.9		0.3898	10	61	103
DGE433025F	9.922	25/64	0.3906	10	61	103
DGE433100	10.0		0.3937	10	61	103
DGE433101	10.1		0.3976	12	71	118
DGE433102	10.2		0.4016	12	71	118
DGE433103	10.3		0.4055	12	71	118
DGE433026F	10.319	13/32	0.4062	12	71	118
DGE433104	10.4		0.4094	12	71	118
DGE433105	10.5		0.4134	12	71	118
DGE433106	10.6		0.4173	12	71	118
DGE433107	10.7		0.4212	12	71	118
DGE433027F	10.716	27/64	0.4219	12	71	118
DGE433108	10.8		0.4252	12	71	118
DGE433109	10.9		0.4291	12	71	118
DGE433110	11.0		0.4330	12	71	118
DGE433111	11.1		0.4370	12	71	118
DGE433028F	11.113	7/16	0.4375	12	71	118
DGE433112	11.2		0.4409	12	71	118
DGE433113	11.3		0.4448	12	71	118
DGE433114	11.4		0.4488	12	71	118
DGE433115	11.5		0.4527	12	71	118
DGE433029F	11.509	29/64	0.4531	12	71	118
DGE433116	11.6		0.4566	12	71	118
DGE433117	11.7		0.4606	12	71	118
DGE433118	11.8		0.4645	12	71	118
DGE433119	11.9		0.4685	12	71	118
DGE433030F	11.906	15/32	0.4688	12	71	118
DGE433120	12.0		0.4724	12	71	118
DGE433121	12.1		0.4764	14	77	124
DGE433122	12.2		0.4803	14	77	124
DGE433123	12.3		0.4843	14	77	124
DGE433031F	12.303	31/64	0.4844	14	77	124
DGE433124	12.4		0.4882	14	77	124
DGE433125	12.5		0.4921	14	77	124
DGE433126	12.6		0.4961	14	77	124
DGE433032F	12.7	1/2	0.5000	14	77	124
DGE433128	12.8		0.5039	14	77	124
DGE433129	12.9		0.5079	14	77	124
DGE433130	13.0		0.5118	14	77	124
DGE433131	13.1		0.5157	14	77	124
DGE433132	13.2		0.5197	14	77	124
DGE433133	13.3		0.5236	14	77	124
DGE433134	13.4		0.5276	14	77	124
DGE433135	13.5		0.5314	14	77	124
DGE433136	13.6		0.5354	14	77	124
DGE433137	13.7		0.5394	14	77	124
DGE433138	13.8		0.5433	14	77	124
DGE433139	13.9		0.5472	14	77	124
DGE433140	14.0		0.5512	14	77	124
DGE433141	14.1		0.5551	16	83	133
DGE433142	14.2		0.5591	16	83	133
DGE433036F	14.288	9/16	0.5625	16	83	133
DGE433143	14.3		0.5630	16	83	133
DGE433144	14.4		0.5669	16	83	133
DGE433145	14.5		0.5708	16	83	133
DGE433146	14.6		0.5748	16	83	133
DGE433147	14.7		0.5787	16	83	133
DGE433148	14.8		0.5827	16	83	133
DGE433149	14.9		0.5866	16	83	133
DGE433150	15.0		0.5905	16	83	133
DGE433151	15.1		0.5945	16	83	133
DGE433152	15.2		0.5984	16	83	133
DGE433153	15.3		0.6024	16	83	133
DGE433154	15.4		0.6063	16	83	133
DGE433155	15.5		0.6102	16	83	133
DGE433156	15.6		0.6142	16	83	133
DGE433157	15.7		0.6181	16	83	133
DGE433158	15.8		0.6220	16	83	133
DGE433040F	15.875	5/8	0.6250	16	83	133
DGE433159	15.9		0.6260	16	83	133
DGE433160	16.0		0.6299	16	83	133
DGE433161	16.1		0.6339	18	93	143
DGE433162	16.2		0.6378	18	93	143
DGE433163	16.3		0.6417	18	93	143
DGE433164	16.4		0.6457	18	93	143
DGE433165	16.5		0.6495	18	93	143
DGE433166	16.6		0.6535	18	93	143
DGE433167	16.7		0.6575	18	93	143
DGE433168	16.8		0.6614	18	93	143
DGE433169	16.9		0.6654	18	93	143
DGE433170	17.0		0.6692	18	93	143
DGE433171	17.1		0.6732	18	93	143
DGE433172	17.2		0.6772	18	93	143
DGE433173	17.3		0.6811	18	93	143
DGE433174	17.4		0.6850	18	93	143
DGE433175	17.5		0.6889	18	93	143
DGE433176	17.6		0.6929	18	93	143
DGE433177	17.7		0.6968	18	93	143
DGE433178	17.8		0.7008	18	93	143
DGE433179	17.9		0.7047	18	93	143
DGE433180	18.0		0.7087	18	93	143
DGE433181	18.1		0.7126	20	101	153
DGE433182	18.2		0.7165	20	101	153
DGE433183	18.3		0.7205	20	101	153
DGE433184	18.4		0.7244	20	101	153
DGE433185	18.5		0.7283	20	101	153
DGE433186	18.6		0.7323	20	101	153
DGE433187	18.7		0.7362	20	101	153
DGE433188	18.8		0.7402	20	101	153
DGE433189	18.9		0.7441	20	101	153
DGE433190	19.0		0.7480	20	101	153
DGE433048F	19.050	3/4	0.7500	20	101	153
DGE433191	19.1		0.7520	20	101	153
DGE433192	19.2		0.7559	20	101	153
DGE433193	19.3		0.7598	20	101	153
DGE433194	19.4		0.7638	20	101	153
DGE433195	19.5		0.7676	20	101	153
DGE433196	19.6		0.7717	20	101	153
DGE433197	19.7		0.7756	20	101	153
DGE433198	19.8		0.7795	20	101	153
DGE433199	19.9		0.7835	20	101	153
DGE433200	20.0		0.7874	20	101	153
