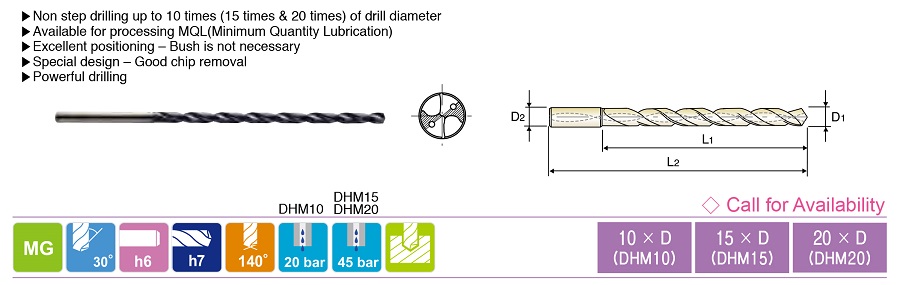

CARBIDE, DREAM DRILLS MQL TYPE END MILL SHANK with COOLANT HOLES (10XD)
View TECHNICAL DATA

EDP No. Drill Diameter Shank Diameter Flute Length Overall Length
Metric Decimal
TiAlN D1 D2 L1 L2
DHM10030 3.0 0.1181 6 40 80
DHM10033 3.3 0.1299 6 47 87
DHM10035 3.5 0.1378 6 47 87
DHM10040 4.0 0.1575 6 53 93
DHM10042 4.2 0.1654 6 60 100
DHM10045 4.5 0.1772 6 60 100
DHM10050 5.0 0.1969 6 66 106
DHM10055 5.5 0.2165 6 73 113
DHM10060 6.0 0.2362 6 79 119
DHM10065 6.5 0.2559 8 86 126
DHM10068 6.8 0.2677 8 92 132
DHM10070 7.0 0.2756 8 92 132
DHM10075 7.5 0.2953 8 99 139
DHM10080 8.0 0.3150 8 105 145
DHM10085 8.5 0.3346 10 112 156
DHM10090 9.0 0.3543 10 118 162
DHM10095 9.5 0.3740 10 126 170
DHM10100 10.0 0.3937 10 132 176
DHM10105 10.5 0.4134 12 139 188
DHM10110 11.0 0.4330 12 145 194
DHM10115 11.5 0.4527 12 152 201
DHM10120 12.0 0.4724 12 158 207
DHM10125 12.5 0.4921 14 165 214
DHM10130 13.0 0.5118 14 171 220
DHM10135 13.5 0.5314 14 178 227
DHM10140 14.0 0.5512 14 184 233
