T15 3 FLUTE FINISHING
View TECHNICAL DATA

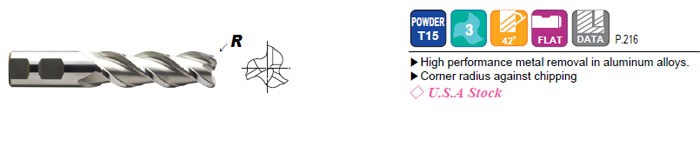

  T-15 3 FLUTE 37° HELIX FINISHING WITH CORNER RADIUS & WITHOUT CORNER RADIUS END MILL REGULAR LENGTH & MEDIUM LENGTH & LONG LENGTH
OD SD LOC OAL w/o Corner Radius w/ .120 Corner Radius
Un-Coated TiCN-Coated Un-Coated TiCN-Coated
EDP No. EDP No. EDP No. EDP No.
REGULAR 1/2 1/2 1 1/4 3 1/4 EP10323 EP10323C EP10321 EP10321C
LONG 1/2 1/2 2 4 EP10324 EP10324C EP10322 EP10322C
REGULAR 5/8 5/8 1 5/8 3 3/4 EP10403 EP10403C EP10401 EP10401C
LONG 5/8 5/8 2 1/2 4 5/8 EP10404 EP10404C EP10402 EP10402C
REGULAR 3/4 3/4 1 5/8 3 7/8 EP10484 EP10484C EP10481 EP10481C
MEDIUM 3/4 3/4 2 1/4 4 5/8 EP10485 EP10485C EP10482 EP10482C
LONG 3/4 3/4 3 5 1/4 EP10486 EP10486C EP10483 EP10483C
REGULAR 1 1 2 4 1/2 EP10644 EP10644C EP10641 EP10641C
MEDIUM 1 1 3 5 1/2 EP10645 EP10645C EP10642 EP10642C
LONG 1 1 4 6 1/2 EP10646 EP10646C EP10643 EP10643C
REGULAR 1 1/4 1 1/4 2 4 1/2 EP11165 EP11165C EP11162 EP11162C
MEDIUM 1 1/4 1 1/4 3 5 1/2 EP11166 EP11166C EP11163 EP11163C
LONG 1 1/4 1 1/4 4 6 1/2 EP11167 EP11167C EP11164 EP11164C
REGULAR 1 1/2 1 1/4 2 4 1/2 EP11324 EP11324C EP11321 EP11321C
MEDIUM 1 1/2 1 1/4 3 5 1/2 EP11325 EP11325C EP11322 EP11322C
LONG 1 1/2 1 1/4 4 6 1/2 EP11326 EP11326C EP11323 EP11323C
