Rotary Tooling Home >

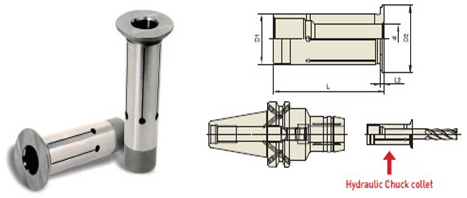

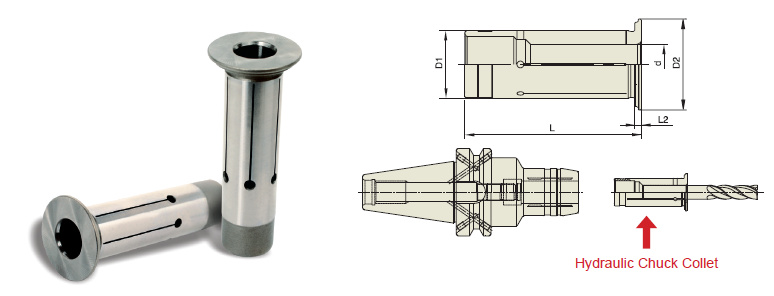

HYDRAULIC CHUCK COLLET (REDUCTION SLEEVE : CLOSED TYPE) - HS - METRIC/METRIC

EDP No. TYPE d D1 D2 L L2
912030 HS12 3 3 12 19 47 2
912040 4 4 12 19 47 2
912050 5 5 12 19 47 2
912060 6 6 12 19 47 2
912070 7 7 12 19 47 2
912080 8 8 12 19 47 2
920030 HS20 3 3 20 27 52.5 2
920040 4 4 20 27 52.5 2
920050 5 5 20 27 52.5 2
920060 6 6 20 27 52.5 2
920070 7 7 20 27 52.5 2
920080 8 8 20 27 52.5 2
920090 9 9 20 27 52.5 2
920100 10 10 20 27 52.5 2
920110 11 11 20 27 52.5 2
920120 12 12 20 27 52.5 2
920130 13 13 20 27 52.5 2
920140 14 14 20 27 52.5 2
920150 15 15 20 27 52.5 2
920160 16 16 20 27 52.5 2
932060 HS32 6 6 32 39 63.5 3
932080 8 8 32 39 63.5 3
932100 10 10 32 39 63.5 3
932120 12 12 32 39 63.5 3
932140 14 14 32 39 63.5 3
932160 16 16 32 39 63.5 3
932180 18 18 32 39 63.5 3
932200 20 20 32 39 63.5 3
932250 25 25 32 39 63.5 3
