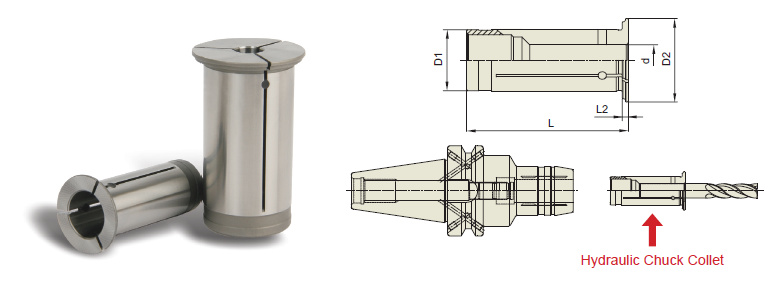

HYDRAULIC CHUCK COLLET (REDUCTION SLEEVE : OPEN TYPE) - HK - METRIC/METRIC

EDP No. TYPE d D1 D2 L L2
812030 HK12 3 3 12 19 47 2
812040 4 4 12 19 47 2
812050 5 5 12 19 47 2
812060 6 6 12 19 47 2
812070 7 7 12 19 47 2
812008 8 8 12 19 47 2
820030 HK20 3 3 20 27 52.5 2
820040 4 4 20 27 52.5 2
820050 5 5 20 27 52.5 2
820060 6 6 20 27 52.5 2
820070 7 7 20 27 52.5 2
820080 8 8 20 27 52.5 2
820090 9 9 20 27 52.5 2
820100 10 10 20 27 52.5 2
820110 11 11 20 27 52.5 2
820120 12 12 20 27 52.5 2
820130 13 13 20 27 52.5 2
820140 14 14 20 27 52.5 2
820150 15 15 20 27 52.5 2
820160 16 16 20 27 52.5 2
832060 HK32 6 6 32 39 63.5 3
832080 8 8 32 39 63.5 3
832100 10 10 32 39 63.5 3
832120 12 12 32 39 63.5 3
832140 14 14 32 39 63.5 3
832160 16 16 32 39 63.5 3
832180 18 18 32 39 63.5 3
832200 20 20 32 39 63.5 3
832250 25 25 32 39 63.5 3
