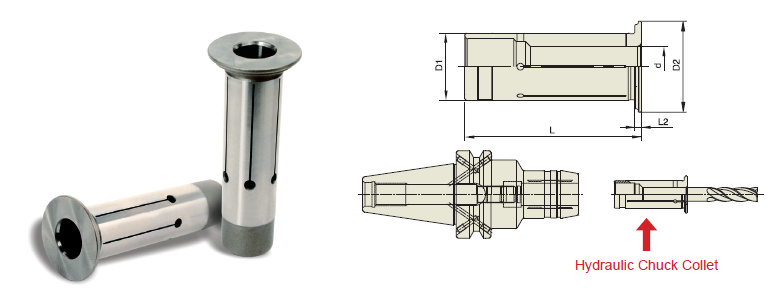

HYDRAULIC CHUCK COLLET (REDUCTION SLEEVE : CLOSED TYPE) - HS - INCH/INCH

EDP No. TYPE d D1 D2 L L2
712108 HS1/2 1/8 0.125 0.500 0.748 1.850 0.079
712316 3/16 0.188 0.500 0.748 1.850 0.079
712104 1/4 0.250 0.500 0.748 1.850 0.079
712516 5/16 0.313 0.500 0.748 1.850 0.079
725108 HS3/4 1/8 0.125 0.750 1.063 2.067 0.079
725316 3/16 0.188 0.750 1.063 2.067 0.079
725104 1/4 0.250 0.750 1.063 2.067 0.079
725516 5/16 0.313 0.750 1.063 2.067 0.079
725308 3/8 0.375 0.750 1.063 2.067 0.079
725102 1/2 0.500 0.750 1.063 2.067 0.079
725508 5/8 0.625 0.750 1.063 2.067 0.079
726316 HS1 3/16 0.188 1.000 1.142 2.224 0.079
726104 1/4 0.250 1.000 1.142 2.224 0.079
726516 5/16 0.313 1.000 1.142 2.224 0.079
726308 3/8 0.375 1.000 1.142 2.224 0.079
726716 7/16 0.438 1.000 1.142 2.224 0.079
726102 1/2 0.500 1.000 1.142 2.224 0.079
726508 5/8 0.625 1.000 1.142 2.224 0.079
726304 3/4 0.750 1.000 1.142 2.224 0.079
732108 HS11/4 1/8 0.125 1.250 1.535 2.500 0.118
732316 3/16 0.188 1.250 1.535 2.500 0.118
732104 1/4 0.250 1.250 1.535 2.500 0.118
732516 5/16 0.313 1.250 1.535 2.500 0.118
732308 3/8 0.375 1.250 1.535 2.500 0.118
732102 1/2 0.500 1.250 1.535 2.500 0.118
732508 5/8 0.625 1.250 1.535 2.500 0.118
732304 3/4 0.750 1.250 1.535 2.500 0.118
732100 1 1.000 1.250 1.535 2.500 0.118
