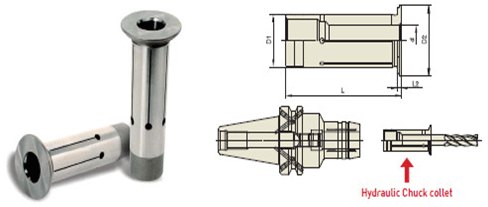

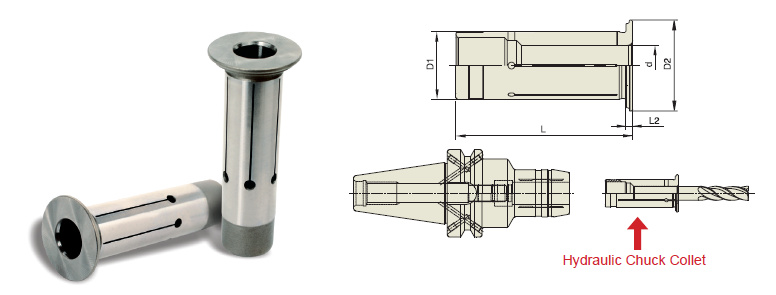

HYDRAULIC CHUCK COLLET (REDUCTION SLEEVE : CLOSED TYPE) - HS - METRIC/INCH

EDP No. TYPE d D1 D2 L L2
512108 HS12 1/8 0.125 0.472 0.748 1.850 0.079
512316 3/16 0.188 0.472 0.748 1.850 0.079
512104 1/4 0.250 0.472 0.748 1.850 0.079
512516 5/16 0.313 0.472 0.748 1.850 0.079
520108 HS20 1/8 0.125 0.787 1.063 2.067 0.079
520316 3/16 0.188 0.787 1.063 2.067 0.079
520104 1/4 0.250 0.787 1.063 2.067 0.079
520516 5/16 0.313 0.787 1.063 2.067 0.079
520308 3/8 0.375 0.787 1.063 2.067 0.079
520102 1/2 0.500 0.787 1.063 2.067 0.079
520508 5/8 0.625 0.787 1.063 2.067 0.079
532108 HS32 1/8 0.125 1.260 1.535 2.500 0.118
532316 3/16 0.188 1.260 1.535 2.500 0.118
532104 1/4 0.250 1.260 1.535 2.500 0.118
532516 5/16 0.313 1.260 1.535 2.500 0.118
532308 3/8 0.375 1.260 1.535 2.500 0.118
532102 1/2 0.500 1.260 1.535 2.500 0.118
532508 5/8 0.625 1.260 1.535 2.500 0.118
532304 3/4 0.750 1.260 1.535 2.500 0.118
532100 1 1.000 1.260 1.535 2.500 0.118
