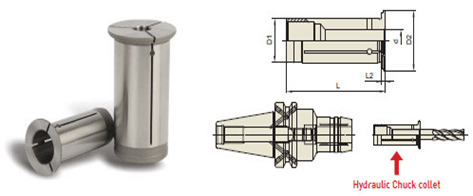

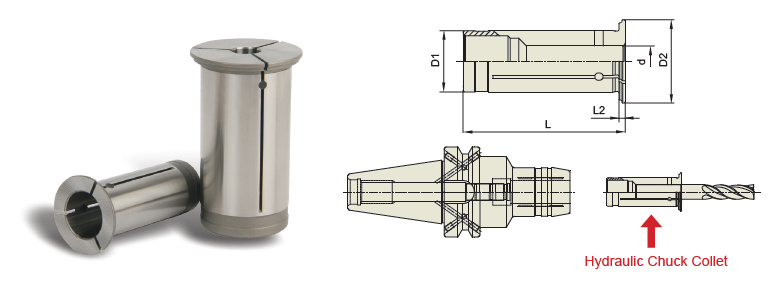

HYDRAULIC CHUCK COLLET (REDUCTION SLEEVE : OPEN TYPE) - HK - METRIC/INCH

EDP No. TYPE d D1 D2 L L2
412108 HK12 1/8 0.125 0.472 0.748 1.850 0.079
412316 3/16 0.188 0.472 0.748 1.850 0.079
412104 1/4 0.250 0.472 0.748 1.850 0.079
412516 5/16 0.313 0.472 0.748 1.850 0.079
420108 HK20 1/8 0.125 0.787 1.063 2.067 0.079
420316 3/16 0.188 0.787 1.063 2.067 0.079
420104 1/4 0.250 0.787 1.063 2.067 0.079
420516 5/16 0.313 0.787 1.063 2.067 0.079
420308 3/8 0.375 0.787 1.063 2.067 0.079
420102 1/2 0.500 0.787 1.063 2.067 0.079
420508 5/8 0.625 0.787 1.063 2.067 0.079
432108 HK32 1/8 0.125 1.260 1.535 2.500 0.118
432316 3/16 0.188 1.260 1.535 2.500 0.118
432104 1/4 0.250 1.260 1.535 2.500 0.118
432516 5/16 0.313 1.260 1.535 2.500 0.118
432308 3/8 0.375 1.260 1.535 2.500 0.118
432102 1/2 0.500 1.260 1.535 2.500 0.118
432508 5/8 0.625 1.260 1.535 2.500 0.118
432304 3/4 0.750 1.260 1.535 2.500 0.118
432100 1 1.000 1.260 1.535 2.500 0.118
