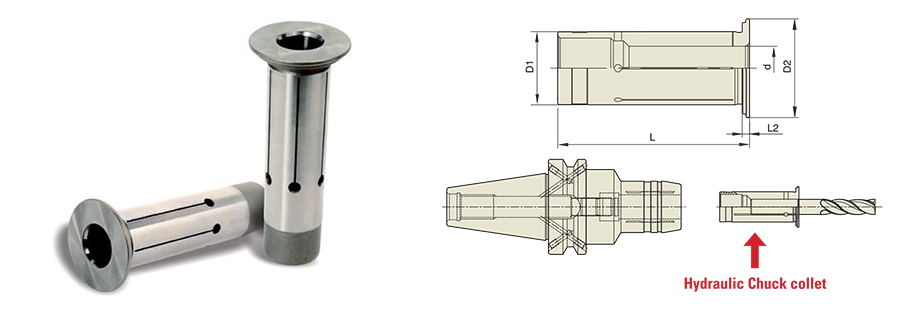

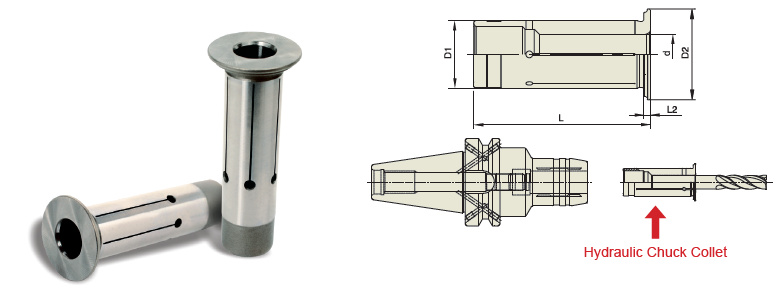

HYDRAULIC CHUCK COLLET (REDUCTION SLEEVE : CLOSED TYPE) - HS - INCH/METRIC

EDP No. TYPE d D1 D2 L L2
111203 HS1/2 3 3mm 0.500 0.748 1.850 0.079
111204 4 4mm 0.500 0.748 1.850 0.079
111205 5 5mm 0.500 0.748 1.850 0.079
111206 6 6mm 0.500 0.748 1.850 0.079
111208 8 8mm 0.500 0.748 1.850 0.079
112503 HS3/4 3 3mm 0.750 1.063 2.067 0.079
112504 4 4mm 0.750 1.063 2.067 0.079
112505 5 5mm 0.750 1.063 2.067 0.079
112506 6 6mm 0.750 1.063 2.067 0.079
112508 8 8mm 0.750 1.063 2.067 0.079
112510 10 10mm 0.750 1.063 2.067 0.079
112512 12 12mm 0.750 1.063 2.067 0.079
112514 14 14mm 0.750 1.063 2.067 0.079
112606 HS1 6 6mm 1.000 1.142 2.224 0.079
112608 8 8mm 1.000 1.142 2.224 0.079
112610 10 10mm 1.000 1.142 2.224 0.079
112612 12 12mm 1.000 1.142 2.224 0.079
112614 14 14mm 1.000 1.142 2.224 0.079
112616 16 16mm 1.000 1.142 2.224 0.079
112618 18 18mm 1.000 1.142 2.224 0.079
112620 20 20mm 1.000 1.142 2.224 0.079
113208 HS11/4 8 8mm 1.250 1.535 2.500 0.118
113210 10 10mm 1.250 1.535 2.500 0.118
113212 12 12mm 1.250 1.535 2.500 0.118
113214 14 14mm 1.250 1.535 2.500 0.118
113216 16 16mm 1.250 1.535 2.500 0.118
113218 18 18mm 1.250 1.535 2.500 0.118
113220 20 20mm 1.250 1.535 2.500 0.118
113225 25 25mm 1.250 1.535 2.500 0.118
