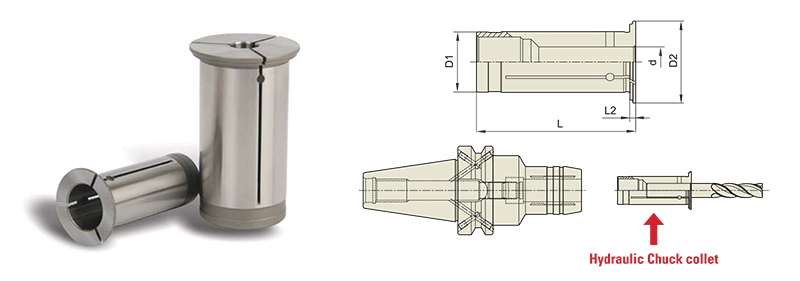

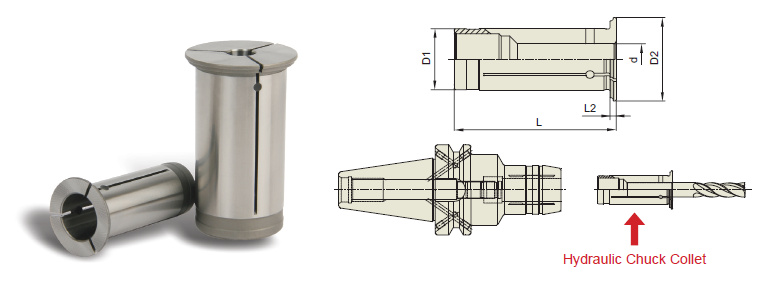

HYDRAULIC CHUCK COLLET (REDUCTION SLEEVE : OPEN TYPE) - HK - INCH/METRIC

EDP No. TYPE d D1 D2 L L2
101203 HK1/2 3 3mm 0.500 0.748 1.850 0.079
101204 4 4mm 0.500 0.748 1.850 0.079
101205 5 5mm 0.500 0.748 1.850 0.079
101206 6 6mm 0.500 0.748 1.850 0.079
101208 8 8mm 0.500 0.748 1.850 0.079
102503 HK3/4 3 3mm 0.750 1.063 2.067 0.079
102504 4 4mm 0.750 1.063 2.067 0.079
102505 5 5mm 0.750 1.063 2.067 0.079
102506 6 6mm 0.750 1.063 2.067 0.079
102508 8 8mm 0.750 1.063 2.067 0.079
102510 10 10mm 0.750 1.063 2.067 0.079
102512 12 12mm 0.750 1.063 2.067 0.079
102514 14 14mm 0.750 1.063 2.067 0.079
102606 HK1 6 6mm 1.000 1.142 2.224 0.079
102608 8 8mm 1.000 1.142 2.224 0.079
102610 10 10mm 1.000 1.142 2.224 0.079
102612 12 12mm 1.000 1.142 2.224 0.079
102614 14 14mm 1.000 1.142 2.224 0.079
102616 16 16mm 1.000 1.142 2.224 0.079
102618 18 18mm 1.000 1.142 2.224 0.079
102620 20 20mm 1.000 1.142 2.224 0.079
103208 HK11/4 8 8mm 1.250 1.535 2.500 0.118
103210 10 10mm 1.250 1.535 2.500 0.118
103212 12 12mm 1.250 1.535 2.500 0.118
103214 14 14mm 1.250 1.535 2.500 0.118
103216 16 16mm 1.250 1.535 2.500 0.118
103218 18 18mm 1.250 1.535 2.500 0.118
103220 20 20mm 1.250 1.535 2.500 0.118
103225 25 25mm 1.250 1.535 2.500 0.118
