NC DRILL CHUCK (CAT)
|
|
|
|
|
|
|
|

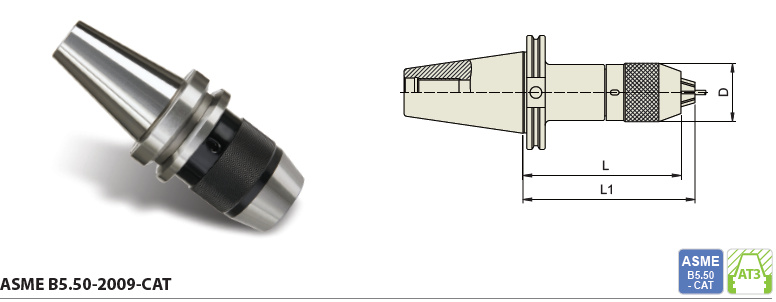

 NC DRILL CHUCK (CAT) ASME B5.50-2009-CAT |
| EDP No. |
TAPER No. |
MODEL No. |
CLAMPING RANGE |
D |
L |
L1 |
| RK020 |
40 | CAT40 - NPU8-2.95 |
0.012 - 0.315 |
1.437 | 2.950 | 2.980 |
| RK022 |
CAT40 - NPU8-4.33 |
0.012 - 0.315 |
1.437 | 4.330 | 4.550 |
| RK024 |
CAT40 - NPU8-5.90 |
0.012 - 0.315 |
1.437 | 5.900 | 5.900 |
| RK026 |
CAT40 - NPU13-3.54 |
0.039 - 0.512 |
1.984 | 3.540 | 3.760 |
| RK028 |
CAT40 - NPU13-5.12 |
0.039 - 0.512 |
1.984 | 5.120 | 5.340 |
| RK030 |
CAT40 - NPU13-5.91 |
0.039 - 0.512 |
1.984 | 5.910 | 5.900 |
| RL020 |
50 | CAT50 - NPU8-3.54 |
0.012 - 0.315 |
1.437 | 3.540 | 3.760 |
| RL022 |
CAT50 - NPU8-4.33 |
0.012 - 0.315 |
1.437 | 4.330 | 4.550 |
| RL024 |
CAT50 - NPU8-6.69 |
0.012 - 0.315 |
1.437 | 6.690 | 6.920 |
| RL026 |
CAT50 - NPU13-3.94 |
0.039 - 0.512 |
1.984 | 3.940 | 4.160 |
| RL028 |
CAT50 - NPU13-5.12 |
0.039 - 0.512 |
1.984 | 5.120 | 5.340 |
| RL030 |
CAT50 - NPU13-5.91 |
0.039 - 0.512 |
1.984 | 5.910 | 5.900 |
| RL032 |
CAT50 - NPU13-7.48 |
0.039 - 0.512 |
1.984 | 7.480 | 7.700 |
|
|
 |
|
