SHELL MILL ARBOR - CAT - INCH

STANDARD

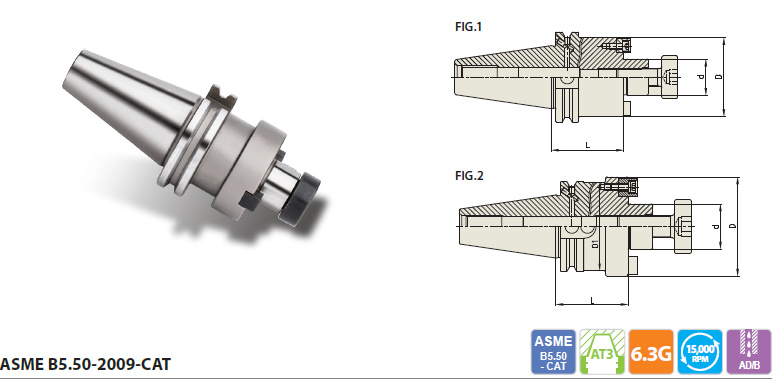

EDP No. TAPER No. MODEL No. d L D D1 COLLAR BOLT FIG.
EK006B 40 CAT40 AD/B - SMA 1/2 - 1.50 0.500 1.50 1.44 - UNF1/4-28x16L 1
EK010B CAT40 AD/B - SMA 3/4 - 1.50 0.750 1.50 1.69 - UNF3/8-24x24L 1
EK014B CAT40 AD/B - SMA 1 - 2.00 1.000 2.00 2.19 - UNF1/2-20x32L 1
EK017B CAT40 AD/B - SMA 1 1/4 - 2.00 1.250 2.00 2.75 2.46 UNF5/8-18x40L 2
EK021B CAT40 AD/B - SMA 1 1/2 - 3.00 1.500 3.00 3.81 2.46 UNF3/4-16x47L 2
EL010B 50 CAT50 AD/B - SMA 3/4 - 1.50 0.750 1.50 1.69 - UNF3/8-24x24L 1
EL014B CAT50 AD/B - SMA 1 - 2.00 1.000 2.00 2.19 - UNF1/2-20x32L 1
EL017B CAT50 AD/B - SMA 1 1/4 - 2.00 1.250 2.00 2.75 - UNF5/8-18x40L 1
EL021B CAT50 AD/B - SMA 1 1/2 - 2.50 1.500 2.50 3.81 - UNF3/4-16x47L 1
EL029B CAT50 AD/B - SMA 2 - 3.00 2.000 3.00 4.88 3.84 UN1-14x48L 2

EXTENDED

EDP No. TAPER No. MODEL No. d L D D1 COLLAR BOLT FIG.
EK306B 40 CAT40 AD/B - SMA 1/2 - 3.50 0.500 3.50 1.44 - UNF1/4-28x16L 1
EK310B CAT40 AD/B - SMA 3/4 - 3.50 0.750 3.50 1.69 - UNF3/8-24x24L 1
EK314B CAT40 AD/B - SMA 1 - 4.00 1.000 4.00 2.19 - UNF1/2-20x32L 1
EK317B CAT40 AD/B - SMA 1 1/4 - 4.00 1.250 4.00 2.75 2.46 UNF5/8-18x40L 2
EK321B CAT40 AD/B - SMA 1 1/2 - 4.00 1.500 4.00 3.81 2.46 UNF3/4-16x47L 2
EL310B 50 CAT50 AD/B - SMA 3/4 - 3.50 0.750 3.50 1.69 - UNF3/8-24x24L 1
EL314B CAT50 AD/B - SMA 1 - 4.00 1.000 4.00 2.19 - UNF1/2-20x32L 1
EL317B CAT50 AD/B - SMA 1 1/4 - 4.00 1.250 4.00 2.75 - UNF5/8-18x40L 1
EL321B CAT50 AD/B - SMA 1 1/2 - 4.00 1.500 4.00 3.81 - UNF3/4-16x47L 1
EL329B CAT50 AD/B - SMA 2 - 4.00 2.000 4.00 4.88 3.84 UN1-14x48L 2
