Rotary Tooling Home >

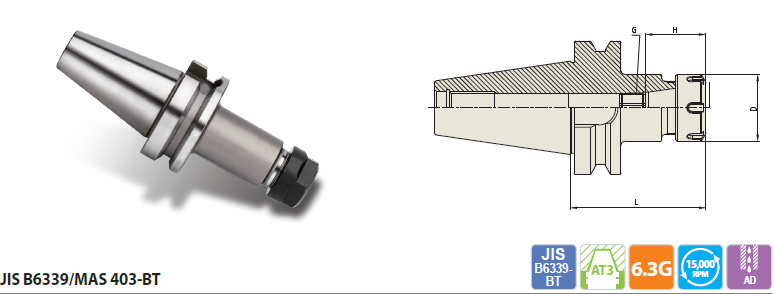

ER COLLET CHUCK - BT50 - INCH

STANDARD

EDP No. TAPER No. MODEL No. CLAMPING RANGE D L H G COLLET SERIES
Min. Max.
BI031 50 BT50 - ER 16 - 4.88 .019 - .393 1.102 4.880 1.008 1.886 UN7/16-18 1/2L ER16
BI032 BT50 - ER 20 - 2.63 .039 - .511 1.339 2.630 1.220 3.102 UN9/16-16 1/2L ER20
BI033 BT50 - ER 25 - 2.63 .039 - .629 1.654 2.630 1.339 2.335 UN11/16-16 1/2L ER25
BI034 BT50 - ER 32 - 4.00 .078 - .787 1.969 4.000 1.575 3.555 UN7/8-16 1/2L ER32

EXTENDED

EDP No. TAPER No. MODEL No. CLAMPING RANGE D L H G COLLET SERIES
Min. Max.
BI331 50 BT50 - ER16 - 6.00 .019 - .393 1.102 6.000 1.008 1.886 UN7/16-18 1/2L ER16
BI332 BT50 - ER 20 - 6.00 .039 - .511 1.339 6.000 1.220 3.102 UN9/16-16 1/2L ER20
BI333 BT50 - ER 25 - 6.00 .039 - .629 1.654 6.000 1.339 2.335 UN11/16-16 1/2L ER25
BI334 BT50 - ER 32 - 6.00 .078 - .787 1.969 6.000 1.575 3.555 UN7/8-16 1/2L ER32
