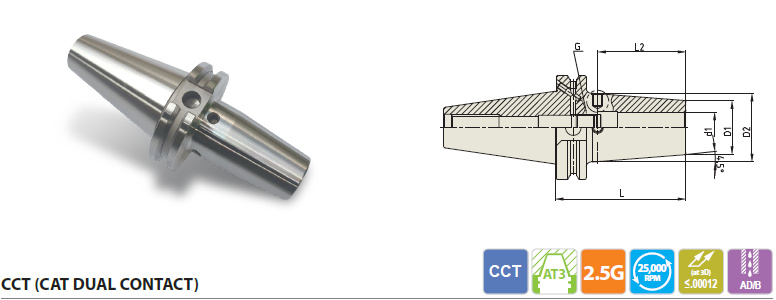

DUAL CONTACT SHRINK FIT HOLDER - CCT50 - INCH

EDP No. TAPER No. MODEL No. d1 D1 D2 L L2 G
VC020 50 CCT50 AD/B - SFH 1/8 - 3.15 0.125 0.394 0.748 3.150 0.354 -
VC022 CCT50 AD/B - SFH 3/16 - 3.15 0.188 0.394 0.748 3.150 0.472 -
VC024 CCT50 AD/B - SFH 1/4 - 3.15 0.250 0.827 1.063 3.150 1.417 M5x0.8mm
VC026 CCT50 AD/B - SFH 1/4 - 6.30 0.250 0.827 1.063 6.300 1.417 M5x0.8mm
VC028 CCT50 AD/B - SFH 3/8 - 3.15 0.375 0.945 1.260 3.150 1.634 M8x1.0mm
VC030 CCT50 AD/B - SFH 3/8 - 6.30 0.375 0.945 1.260 6.300 1.634 M8x1.0mm
VC032 CCT50 AD/B - SFH 1/2 - 3.15 0.500 0.945 1.260 3.150 1.929 M10x1.0mm
VC034 CCT50 AD/B - SFH 1/2 - 6.30 0.500 0.945 1.260 6.300 1.929 M10x1.0mm
VC036 CCT50 AD/B - SFH 5/8 - 3.15 0.625 1.063 1.339 3.150 2.047 M12x1.0mm
VC040 CCT50 AD/B - SFH 5/8 - 6.30 0.625 1.063 1.339 6.300 2.047 M12x1.0mm
VC042 CCT50 AD/B - SFH 3/4 - 3.15 0.750 1.299 1.654 3.150 2.126 M16x1.0mm
VC044 CCT50 AD/B - SFH 3/4 - 6.30 0.750 1.299 1.654 6.300 2.126 M16x1.0mm
VC046 CCT50 AD/B - SFH 1 - 3.94 1.000 1.732 2.087 3.937 2.362 M16x1.0mm
VC048 CCT50 AD/B - SFH 1 - 6.30 1.000 1.732 2.087 6.300 2.362 M16x1.0mm
VC050 CCT50 AD/B - SFH 1 1/4 - 3.94 1.250 1.732 2.087 3.937 2.362 M16x1.0mm
VC052 CCT50 AD/B - SFH 1 1/4 - 6.30 1.250 1.732 2.087 6.300 2.362 M16x1.0mm
