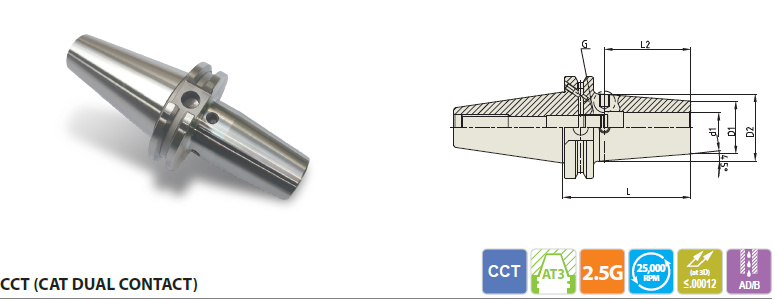

DUAL CONTACT SHRINK FIT HOLDER - CCT40 - INCH

EDP No. TAPER No. MODEL No. d1 D1 D2 L L2 G
VB020 40 CCT40 AD/B - SFH 1/8 - 3.15 0.125 0.394 0.748 3.150 0.354 -
VB201 CCT40 AD/B - SFH 1/8 - 5.12 0.125 0.394 0.748 5.120 0.354 -
VB022 CCT40 AD/B - SFH 3/16 - 3.15 0.188 0.394 0.748 3.150 0.472 -
VB202 CCT40 AD/B - SFH 3/16 - 5.12 0.188 0.394 0.748 5.120 0.472 -
VB024 CCT40 AD/B - SFH 1/4 - 3.15 0.250 0.827 1.063 3.150 1.417 M5x0.8mm
VB026 CCT40 AD/B - SFH 1/4 - 6.30 0.250 0.827 1.063 6.300 1.417 M5x0.8mm
VB028 CCT40 AD/B - SFH 3/8 - 3.15 0.375 0.945 1.260 3.150 1.713 M8x1.0mm
VB030 CCT40 AD/B - SFH 3/8 - 6.30 0.375 0.945 1.260 6.300 1.713 M8x1.0mm
VB032 CCT40 AD/B - SFH 1/2 - 3.15 0.500 0.945 1.260 3.150 1.929 M10x1.0mm
VB034 CCT40 AD/B - SFH 1/2 - 6.30 0.500 0.945 1.260 6.300 1.929 M10x1.0mm
VB036 CCT40 AD/B - SFH 5/8 - 3.15 0.625 1.063 1.339 3.150 2.047 M12x1.0mm
VB038 CCT40 AD/B - SFH 5/8 - 6.30 0.625 1.063 1.339 6.300 2.047 M12x1.0mm
VB040 CCT40 AD/B - SFH 3/4 - 3.15 0.750 1.299 1.654 3.150 2.126 M16x1.0mm
VB042 CCT40 AD/B - SFH 3/4 - 6.30 0.750 1.299 1.654 6.300 2.126 M16x1.0mm
VB044 CCT40 AD/B - SFH 1 - 3.94 1.000 1.732 2.087 3.937 2.362 M16x1.0mm
VB046 CCT40 AD/B - SFH 1 - 6.30 1.000 1.732 2.087 6.300 2.362 M16x1.0mm
VB048 CCT40 AD/B - SFH 1 1/4 - 3.94 1.250 1.732 2.087 3.937 2.362 M16x1.0mm
VB050 CCT40 AD/B - SFH 1 1/4 - 6.30 1.250 1.732 2.087 6.300 2.362 M16x1.0mm
