YG-1: BEST VALUE IN THE WORLD OF CUTTING TOOLS

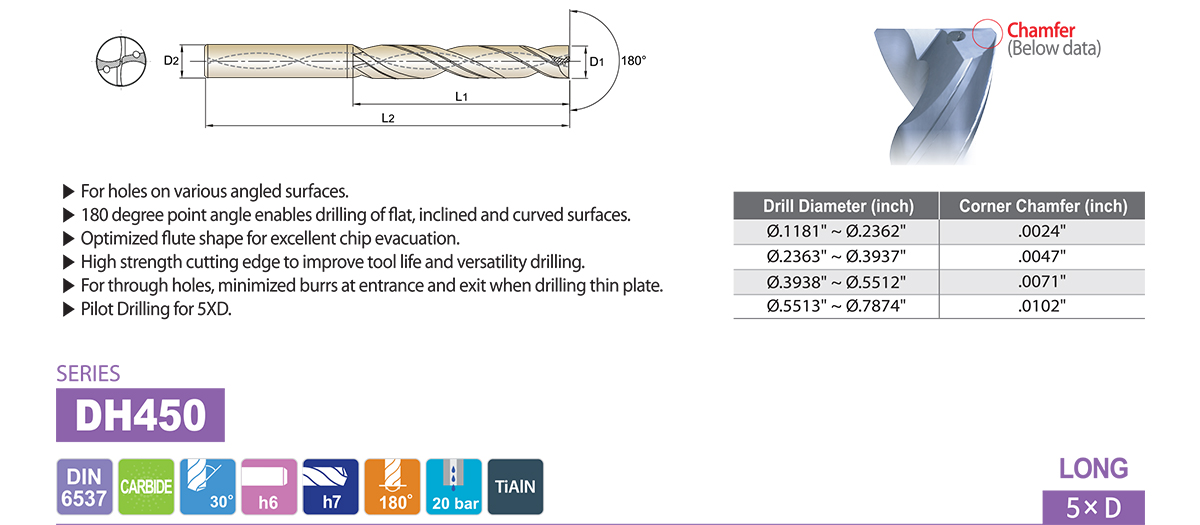

EDP No.	Drill Diameter			Shank Diameter MM	**Flute Length MM	Overall Length MM
TiAIN	Metric (D1)	Fraction (D1)	Decimal (D1)	D2	L1	L2
DH450030	3.0		0.1181	6	28	66
DH450031	3.1		0.1220	6	28	66
DH450008F	3.175	1/8	0.1250	6	28	66
DH450032	3.2		0.1260	6	28	66
DH450033	3.3		0.1299	6	28	66
DH450034	3.4	`	0.1339	6	28	66
DH450035	3.5		0.1378	6	28	66
DH450036	3.6		0.1417	6	28	66
DH450037	3.7		0.1457	6	28	66
DH450038	3.8		0.1496	6	36	74
DH450039	3.9		0.1535	6	36	74
DH450010F	3.969	5/32	0.1563	6	36	74
DH450040	4.0		0.1575	6	36	74
DH450041	4.1		0.1614	6	36	74
DH450042	4.2		0.1654	6	36	74
DH450043	4.3		0.1693	6	36	74
DH450044	4.4		0.1732	6	36	74
DH450045	4.5		0.1772	6	36	74
DH450046	4.6		0.1811	6	36	74
DH450047	4.7		0.1850	6	36	74
DH450012F	4.763	3/16	0.1875	6	44	82
DH450048	4.8		0.1890	6	44	82
DH450049	4.9		0.1929	6	44	82
DH450050	5.0		0.1969	6	44	82
DH450051	5.1		0.2008	6	44	82
DH450052	5.2		0.2047	6	44	82
DH450053	5.3		0.2087	6	44	82
DH450054	5.4		0.2126	6	44	82
DH450055	5.5		0.2165	6	44	82
DH450014F	5.556	7/32	0.2188	6	44	82
DH450056	5.6		0.2205	6	44	82
DH450057	5.7		0.2244	6	44	82
DH450058	5.8		0.2283	6	44	82
DH450059	5.9		0.2323	6	44	82
DH450060	6.0		0.2362	6	44	82
DH450061	6.1		0.2402	8	53	91
DH450062	6.2		0.2441	8	53	91
DH450063	6.3		0.2480	8	53	91
DH450016F	6.350	1/4	0.2500	8	53	91
DH450064	6.4		0.2520	8	53	91
DH450065	6.5		0.2559	8	53	91
DH450066	6.6		0.2598	8	53	91
DH450067	6.7		0.2638	8	53	91
DH450068	6.8		0.2677	8	53	91
DH450069	6.9		0.2717	8	53	91
DH450070	7.0		0.2756	8	53	91
DH450071	7.1		0.2795	8	53	91
DH450018F	7.144	9/32	0.2813	8	53	91
DH450072	7.2		0.2835	8	53	91
DH450073	7.3		0.2874	8	53	91
DH450074	7.4		0.2913	8	53	91
DH450075	7.5		0.2953	8	53	91
DH450076	7.6		0.2992	8	53	91
DH450077	7.7		0.3031	8	53	91
DH450078	7.8		0.3071	8	53	91
DH450079	7.9		0.3110	8	53	91
DH450020F	7.938	5/16	0.3125	8	53	91
DH450080	8.0		0.3150	8	53	91
DH450081	8.1		0.3189	10	61	103
DH450082	8.2		0.3228	10	61	103
DH450083	8.3		0.3268	10	61	103
DH450021F	8.334	21/64	0.3281	10	61	103
DH450084	8.4		0.3307	10	61	103
DH450085	8.5		0.3346	10	61	103
DH450086	8.6		0.3386	10	61	103
DH450087	8.7		0.3425	10	61	103
DH450088	8.8		0.3465	10	61	103
DH450089	8.9		0.3504	10	61	103
DH450090	9.0		0.3543	10	61	103
DH450091	9.1		0.3583	10	61	103
DH450023F	9.128	23/64	0.3594	10	61	103
DH450092	9.2		0.3622	10	61	103
DH450093	9.3		0.3661	10	61	103
DH450094	9.4		0.3701	10	61	103
DH450095	9.5		0.3740	10	61	103
DH450024F	3/8		0.3750	10	61	103
DH450096	9.6		0.3780	10	61	103
DH450097	9.7		0.3819	10	61	103
DH450098	9.8		0.3858	10	61	103
DH450099	9.9		0.3898	10	61	103
DH450100	10.0		0.3937	10	61	103
DH450101	10.1		0.3976	12	71	118
DH450102	10.2		0.4016	12	71	118
DH450026F	10.319	13/32	0.4063	12	71	118
DH450105	10.5		0.4134	12	71	118
DH450107	10.7		0.4213	12	71	118
DH450108	10.8		0.4252	12	71	118
DH450110	11.0		0.4331	12	71	118
DH450111	11.1		0.4370	12	71	118
DH450028F	7/16	7/16	0.4375	12	71	118
DH450112	11.2		0.4409	12	71	118
DH450115	11.5		0.4528	12	71	118
DH450029F	11.509	29/64	0.4531	12	71	118
DH450118	11.8		0.4646	12	71	118
DH450119	11.9		0.4685	12	71	118
DH450030F	15/32	15/32	0.4688	12	71	118
DH450120	12.0		0.4724	12	71	118
DH450123	12.3		0.4843	14	77	124
DH450124	12.4		0.4882	14	77	124
DH450125	12.5		0.4921	14	77	124
DH450127	12.700	1/2	0.5000	14	77	124
DH450128	12.8		0.5039	14	77	124
DH450130	13.0		0.5118	14	77	124
DH450131	13.1		0.5157	14	77	124
DH450135	13.5		0.5315	14	77	124
DH450138	13.8		0.5433	14	77	124
DH450140	14.0		0.5512	14	77	124
DH450036F	14.288	9/16	0.5625	16	83	133
DH450145	14.5		0.5709	16	83	133
DH450147	14.7		0.5787	16	83	133
DH450150	15.0		0.5906	16	83	133
DH450155	15.5		0.6102	16	83	133
DH450040F	15.875	5/8	0.6250	16	83	133
DH450160	16.0		0.6299	16	83	133
DH450165	16.5		0.6496	18	93	143
DH450170	17.0		0.6693	18	93	143
DH450044F	17.463	11/16	0.6875	18	93	143
DH450175	17.5		0.6890	18	93	143
DH450180	18.0		0.7087	18	93	143
DH450185	18.5		0.7283	20	101	153
DH450190	19.0		0.7480	20	101	153
DH450048F	19.050	3/4	0.7500	20	101	153
DH450195	19.5		0.7677	20	101	153
DH450200	20.0		0.7874	20	101	153
