Rotary Tooling

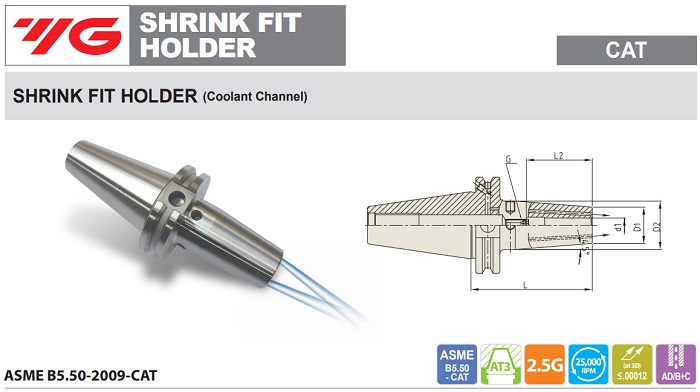

SHRINK FIT HOLDER (COOLANT CHANNEL TYPE) CAT

  SHRINK FIT HOLDER (COOLANT CHANNEL TYPE) ASME B5.50-2009-CAT
EDP TAPER No. MODEL No. d1 D1 D2 L L2 G
VK028J40CAT40 AD/B-SFH3/8C-3.150.3750.9451.2603.1501.654M8x1.0mm
VK030J40CAT40 AD/B-SFH3/8C-6.300.3750.9451.2606.3001.654M8x1.0mm
VK032J40CAT40 AD/B-SFH1/2C-3.150.5000.9451.2603.1501.850M10x1.0mm
VK034J40CAT40 AD/B-SFH1/2C-6.300.5000.9451.2606.3001.850M10x1.0mm
VK036J40CAT40 AD/B-SFH5/8C-3.150.6251.0631.3393.1501.969M12x1.0mm
VK038J40CAT40 AD/B-SFH5/8C-6.300.6251.0631.3396.3001.969M12x1.0mm
VK040J40CAT40 AD/B-SFH3/4C-3.150.7501.2991.6543.1502.047M16x1.0mm
VK042J40CAT40 AD/B-SFH3/4C-6.300.7501.2991.6546.3002.047M16x1.0mm
VK044J40CAT40 AD/B-SFH1C-3.941.0001.7322.0873.9402.283M16x1.0mm
VK046J40CAT40 AD/B-SFH1C-6.301.0001.7322.0876.3002.283M16x1.0mm
VK048J40CAT40 AD/B-SFH1 1/4C-3.941.2501.7322.0873.9402.283M16x1.0mm
VK050J40CAT40 AD/B-SFH1 1/4C-6.301.2501.7322.0876.3002.283M16x1.0mm
VL028J50CAT50 AD/B-SFH3/8C-3.150.3750.9451.2603.1501.575M8x1.0mm
VL030J50CAT50 AD/B-SFH3/8C-6.300.3750.9451.2606.3001.575M8x1.0mm
VL032J50CAT50 AD/B-SFH1/2C-3.150.5000.9451.2603.1501.850M10x1.0mm
VL034J50CAT50 AD/B-SFH1/2C-6.300.5000.9451.2606.3001.850M10x1.0mm
VL036J50CAT50 AD/B-SFH5/8C-3.150.6251.0631.3393.1501.969M12x1.0mm
VL038J50CAT50 AD/B-SFH5/8C-6.300.6251.0631.3396.3001.969M12x1.0mm
VL040J50CAT50 AD/B-SFH3/4C-3.150.7501.2991.6543.1502.047M16x1.0mm
VL042J50CAT50 AD/B-SFH3/4C-6.300.7501.2991.6546.3002.047M16x1.0mm
VL044J50CAT50 AD/B-SFH1C-3.941.0001.7322.0873.9402.283M16x1.0mm
VL046J50CAT50 AD/B-SFH1C-6.301.0001.7322.0876.3002.283M16x1.0mm
VL048J50CAT50 AD/B-SFH1 1/4C-3.941.2501.7322.0873.9402.283M16x1.0mm
VL050J50CAT50 AD/B-SFH1 1/4C-6.301.2501.7322.0876.3002.283M16x1.0mm
