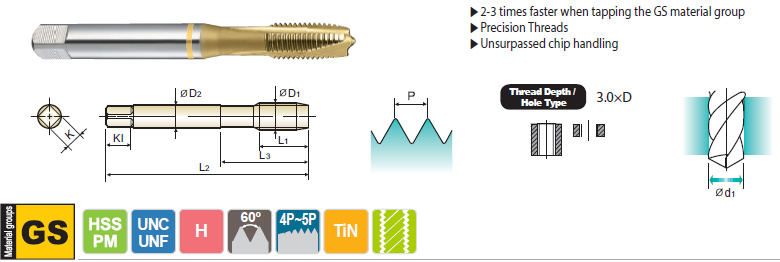

Synchro Tap Spiral Point Tap (SPPT)

Size T.P.I EDP No. Limit Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute
D1 TiN L1 L2 L3 D2 K Kl Z
#4 40UNC TTS66162 H2 0.250 1.88 0.563 0.141 0.110 0.190 3
#4 48UNF TTS66181 H1 0.209 1.88 0.563 0.141 0.110 0.190 3
#4 48UNF TTS66182 H2 0.209 1.88 0.563 0.141 0.110 0.190 3
#5 40UNC TTS66202 H2 0.250 1.94 0.626 0.141 0.110 0.190 3
#5 44UNF TTS66221 H1 0.227 1.94 0.626 0.141 0.110 0.190 3
#5 44UNF TTS66222 H2 0.227 1.94 0.626 0.141 0.110 0.190 3
#6 32UNC TTS66242 H2 0.313 2.00 0.689 0.141 0.110 0.190 3
#6 32UNC TTS66243 H3 0.313 2.00 0.689 0.141 0.110 0.190 3
#6 40UNF TTS66262 H2 0.250 2.00 0.689 0.141 0.110 0.190 3
#8 32UNC TTS66282 H2 0.313 2.13 0.752 0.168 0.131 0.250 3
#8 32UNC TTS66283 H3 0.313 2.13 0.752 0.168 0.131 0.250 3
#8 36UNF TTS66302 H2 0.278 2.13 0.752 0.168 0.131 0.250 3
#10 24UNC TTS66323 H3 0.417 2.38 0.906 0.194 0.152 0.250 3
#10 32UNF TTS66342 H2 0.313 2.38 0.906 0.194 0.152 0.250 3
#10 32UNF TTS66343 H3 0.313 2.38 0.906 0.194 0.152 0.250 3
#12 24UNC TTS66363 H3 0.417 2.38 0.906 0.220 0.165 0.280 3
#12 28UNF TTS66383 H3 0.357 2.38 0.906 0.220 0.165 0.280 3
1/4 20UNC TTS66403 H3 0.500 2.50 1.000 0.255 0.191 0.310 3
1/4 20UNC TTS66405 H5 0.500 2.50 1.000 0.255 0.191 0.310 3
1/4 28UNF TTS66423 H3 0.357 2.50 1.000 0.255 0.191 0.310 3
1/4 28UNF TTS66424 H4 0.357 2.50 1.000 0.255 0.191 0.310 3
5/16 18UNC TTS66443 H3 0.556 2.72 1.126 0.318 0.238 0.380 3
5/16 18UNC TTS66445 H5 0.556 2.72 1.126 0.318 0.238 0.380 3
5/16 24UNF TTS66463 H3 0.417 2.72 1.126 0.318 0.238 0.380 3
5/16 24UNF TTS66464 H4 0.417 2.72 1.126 0.318 0.238 0.380 3
3/8 16UNC TTS66483 H3 0.625 2.94 1.252 0.381 0.286 0.440 3
3/8 16UNC TTS66485 H5 0.625 2.94 1.252 0.381 0.286 0.440 3
3/8 24UNF TTS66503 H3 0.417 2.94 1.252 0.381 0.286 0.440 3
3/8 24UNF TTS66504 H4 0.417 2.94 1.252 0.381 0.286 0.440 3
7/16 14UNC TTS66523 H3 0.714 3.16 1.850 0.323 0.242 0.410 4
7/16 14UNC TTS66525 H5 0.714 3.16 1.850 0.323 0.242 0.410 4
7/16 20UNF TTS66543 H3 0.500 3.16 1.850 0.323 0.242 0.410 4
7/16 20UNF TTS66545 H5 0.500 3.16 1.850 0.323 0.242 0.410 4
1/2 13UNC TTS66563 H3 0.769 3.38 2.067 0.367 0.275 0.440 4
1/2 13UNC TTS66565 H5 0.769 3.38 2.067 0.367 0.275 0.440 4
1/2 20UNF TTS66583 H3 0.500 3.38 2.067 0.367 0.275 0.440 4
1/2 20UNF TTS66585 H5 0.500 3.38 2.067 0.367 0.275 0.440 4
9/16 12UNC TTS66603 H3 0.833 3.59 2.067 0.429 0.322 0.500 4
9/16 12UNC TTS66605 H5 0.833 3.59 2.067 0.429 0.322 0.500 4
9/16 18UNF TTS66623 H3 0.556 3.59 2.067 0.429 0.322 0.500 4
9/16 18UNF TTS66625 H5 0.556 3.59 2.067 0.429 0.322 0.500 4
5/8 11UNC TTS66643 H3 0.909 3.81 2.205 0.480 0.360 0.560 4
5/8 11UNC TTS66645 H5 0.909 3.81 2.205 0.480 0.360 0.560 4
5/8 18UNF TTS66663 H3 0.556 3.81 2.205 0.480 0.360 0.560 4
5/8 18UNF TTS66665 H5 0.556 3.81 2.205 0.480 0.360 0.560 4
3/4 10UNC TTS66703 H3 1.000 4.25 2.480 0.590 0.442 0.690 4
3/4 10UNC TTS66705 H5 1.000 4.25 2.480 0.590 0.442 0.690 4
3/4 16UNF TTS66723 H3 0.625 4.25 2.480 0.590 0.442 0.690 4
3/4 16UNF TTS66725 H5 0.625 4.25 2.480 0.590 0.442 0.690 4
